X (S) N-110/30 Rubber Banbury Mixer for Sale Dispersion Kneader with CE

Product Description

Product Description
Product Description

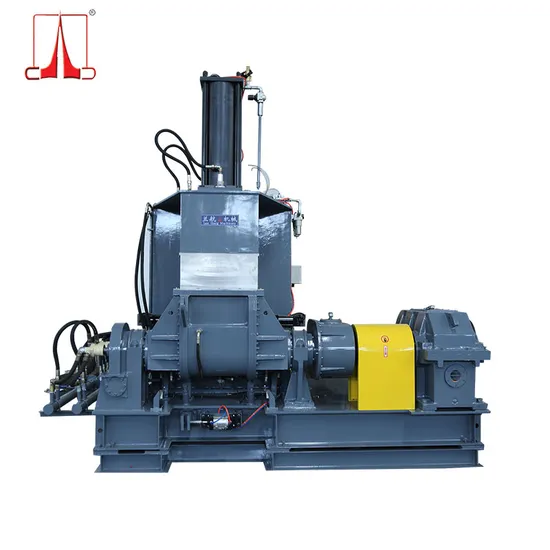

Introduction of Pressed Kneader
Dispersion Mixer has become the most commonly used type of mixer in the rubber and plastics industries. The tilt mixer with its uniquely designed rotors, rotor blades, mixing chamber and pressure lid allows for thorough material flow and controlled shear mixing within the mixing chamber. This intensive mixing achieves a uniform compound mixture with exceptional dispersion of materials.

Features:
Unitized Design: The compactly unitized Dispersion Mixer combines all the tilt mixer components on a common bed. This structure simplifies installation and can be easily re-located.
Easy Cleaning: One of the most important features and advantages of the Dispersion Mixer is its easy cleaning and color change capability. The tilting action of the mixer chamber makes this possible and gives full access to all material contact surfaces for easy and complete cleaning.
Dust Stops Seals: A special high temperature oil-less dry mechanical seal is used between the mixing rotor and chamber. This seal minimizes wear and material leakage as well as eliminating compound contamination with lubricating oils. The simplified seal design allows for quick and easy seal changes.
Mixing Contact Surfaces: The Kneader Dispersion Mixers are available with a variety of surface treatments for the toughest compounds. From mixing silicones to ferrous compounds, treatments include hard chrome, stainless steel and specialty carbide finishes.

Advantages of our mixer:
Mixing rotors adopts Ni-Cr-Mo alloy, the wearing parts welded German imported wearing resistant high speed steel, and chrome plated.
Mixing chamber body adopts wear resistant alloy integral casted, tangential area welded German imported wearing resistant high speed steel, and chrome plated.
Side wall anti-leakage device adopts high advantage material: high pressure casted epoxy glass cloth with the characteristics of wearing resistant, easy for maintenance, not easy to cause chemical reaction.
Pressuring cover adopts "M" structure, which ensures material mixed more evenly and thoroughly.
Main motor electrical current meter in the control panel; During production, once when the mixer chamber pressure is too high, and current exceeds the set value, the terminal contactor with solenoid valve will control the pressuring cover's raising to reduce down the pressure.
Why Choose Products from Lanhang Machinery
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Features:
1.Blade of rotors are well designed for better dispersion&faster cycle time.
2.Effective cooling system to control overheating.
3.Easy Cleaning for color change.
4.Hydraulic tilting system for trouble free working.
5.Simple operation through quality designed electric panels&safety. Product Parameters
Technical Parameters:

ITEM/MODEL	LX-1.5L	LX-3L	LX-10L	LX-35L	LX-55L	LX-75L	LX-100L	LX-160L	LX-190L	LX-270L	LX-410L
ROTOR TYPE	TANGENTIAL ROTORS
RAM DRIVER	HYDRAULIC or PNEUMATIC
Total Volume	1.5L	3L	10L	35L	55L	75L	100L	120L	160L	270L	410L
FILL FACTOR	75%
MainRotor Speed(r/min)	6~6 8~80 10~100	6~6 8~80 10~100	4~40 5~50 6~60
Rotor speed ratio	1:1.17
Power(kw)	22 37 55	37 55 75	75	110	132	160	220	400	500	1250 1500	1250*2
Weight(T)	2,3	3	6	9	12.5	16	22	28	36	45	60

ITEM/MODEL

LH-1.5Y

LH-3Y

LH-10Y

LH-35Y

LH-55Y

LH-90Y

LH-135Y

LH-160Y

LH-190Y

LH-250Y

LH-320Y

LH-410Y

ROTOR TYPE

INTERMESHING ROTORS

RAM DRIVER

HYDRAULIC or PNEUMATIC

Total Volume

1.5L

3L

10L

35L

55L

75L

100L

120L

160L

270L

410L

FILL FACTOR

65%

MainRotor Speed(r/min)

6~60 8~80 10~100

6~60 8~80 10~100

4~40 5~50 6~60

Rotor speed ratio

1:1

Power(kw)

37 55 75

55 75 90

110

160

250

280 350 450

500 630 750

630 750 800

750 1000 1250

1250 1500

1250 1500 1800

2500

Weight(T)

2.8

3.5

6.6

9.5

12.9

16.5

22.5

28.5

37

46

61

79
