Automatic Pipe Hanger Clamp Making Machine

Product Description

Product Description

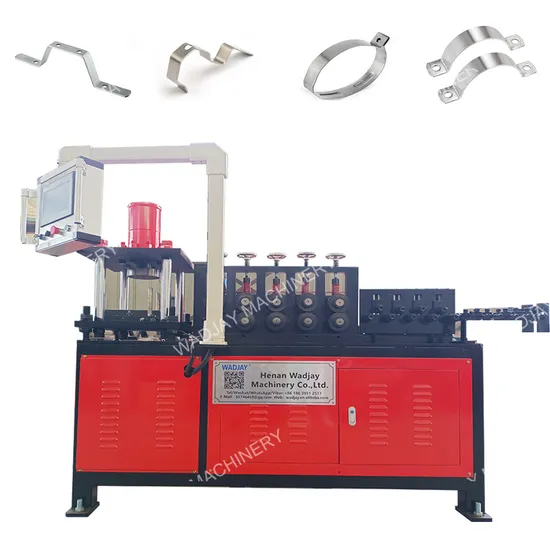

Automatic Pipe Hanger Clamp Making Machine
Hydraulic system, numerical control system, leveling, feeding, punching and bending, sizing CNC Pipe Clamp Bending Machine This equipment is used for one-time forming processing of pipe clamps, which reduces labor, improves efficiency and reduces costs. CNC clamping machine saves time and effort, high precision and easy operation.
Main Specifications of De-coiler and Straightening Combine Device

Item	Technical Parameters
Width of Strip	30-100mm;
Thickness of Strip	≤3.5mm;
Inner Diameter of Coil	ф480-520 mm(according to customer's requirements);
Outer Diameter of Coil	φ1300mm;Loading Weight:≤2T
Expand Way	Manual
Power	De-coiler no power
Width of Strip	30-100mm;
Thickness of Strip	≤2mm;
Motor Power	3 KW (straightening power)
Speed	Max16m/min
Roller Arrangement	7 rollers
Arrange mode	4-Point Independent
Forming Stations	8 Stations
Type of Driven	Gear

Main Specifications of Roll Forming and Cutting Device

Forming Rack:	High strength guide pillar gantry horizontal frame. The slider rollers are adjusted by digital display.
Station Pitch	250mm
Max. Feeding Width of Coil	100mm
Max. Thickness of Material	3.5mm
Diameter of Shafts	Φ60mm ,42CrMo (quenching and tempering)
Material of Roller	Cr12,Hardness: HRC58-60°
Main Driven Motor	37KW (Servo Motor)
Bending and Cutting Devices	1 set

Details of Alu Zinc Roller Shutter Door Machine Shutter Slat Rolling Forming Machine
Straightening & Punching of Automatic Band Clamp Making Machine
Responsible for sending the hoop raw materials of the material rack to the designated position of the main machine when the main machine is working, so as to realize the work of the main machine.
CNC Bending & Cutting of Automatic Clamp Making Machine
The raw materials are clamped to realize typing, punching, forming, cutting, and automatic control of the whole process.
Packaging & Shipping

Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order

---
