WPC Wall Panel Machine Extruder Line with Lamination and Stamping Machine

Product Description

Product Overview
PVC WPC Wall Panel Making Machine WPC PVC Profile Machine can produce different Products by changing the moulds, The products are light weight and mainly used in interior decoration field,such as wall panel ,wall profile.
Processing Flow
Mixer→Auto loader→Twin screw extruder →Mould→ Calibration table →Hual off machine→ Transversal cutter → Stacker
PRODUCT SPECIFICATIONS

PVC raw materials Loading and Mixing system
1. Spiral Loader or Vacuum auto Loader				one set
2. High speed Heating Cooling Mixer unit				one set

PVC Wall Panel Extrusion Line
1. Spiral Loader				one set
2. SJZ65/132 Conical double screw Extruder				one set
3. Mold/Die head Set				one set
4. Calibration table				one set
5. Haul off unit				one set
6. Cutting unit				one set
7. Stacker				one set

Sheet/Plate Recycling machines
1. Sheet Crusher/Grinder				one set
2. PVC Pulverizer/Miller				one set

Specific information

Finished Product Size				Max width: 300mm
Main Material				PVC/CaCO3/Processing Additives
Extruder				65/132 Conical Double-Screw Extruder
Production Capacity				150-250kg/h
Total length				22m

1.SJSZ65/132 Twin Screw Extruder
Machine Electrical part:ABB inverter,Siemens Motor,Electrical wire is CE export standard Motor :37kw SIEMENS Gear Box: JC Brand / DELING Screw& Barrel : Zhoushan Control system : Siemens Screen touch control or RKC or OMRON table control.
2.Mould

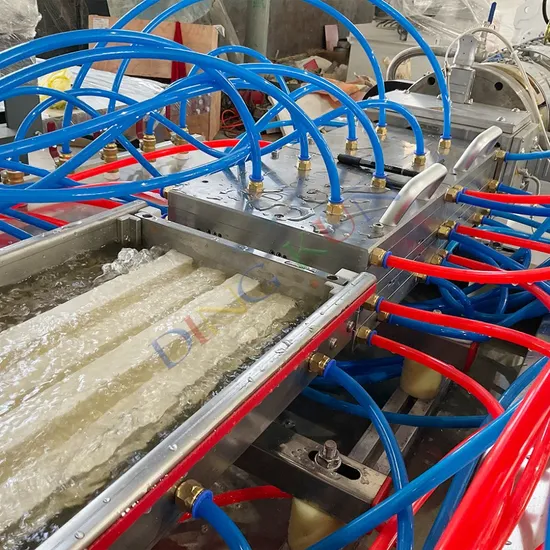

3.Vacuum Calibration platform
Vacuum calibration table structure adopt 304# Materia. There is also table up & down motor and forward & back motor,It is all automatic.It is easy to adjust the mold with Vacuum table. All material what touch with water ,we all use stainless steel.
4.Haul-off & Cutter Machine
Haul-off Machine: Rubber block is soft material. Adopt best design,it can press products closed,and delivery stably.We choose Geax motor,and control two sets motor by ABB inverter,this mean confirm the two arm run with precise. Cutting Machine control by PLC,we can cutting by meter.We provide different saw to cut different material products,we also have two kind of cutter.One is saw cutter,another one is no-dust cutter(cutting by knife). Most important,we also can confirm some special products cutting accuracy.
5.Stacker
Titling type
6.Film lamination machine
Delivery

Exhibition & Customers

Company profile
DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries. 1. Provide all the machines for the complete production according to customer's requirements. 2. Provide complete service for factory layout and other information to help customer to build the factory. 3. Provide the raw material to the customer if need. 4. Provide good service for machine installation and training, until the customers can run the machines and make stable production. 5. Provide after-sell service for all the life, except one year quality guarantee, 6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together
If you are interested in our machine ,please contact Anny Liang

---
