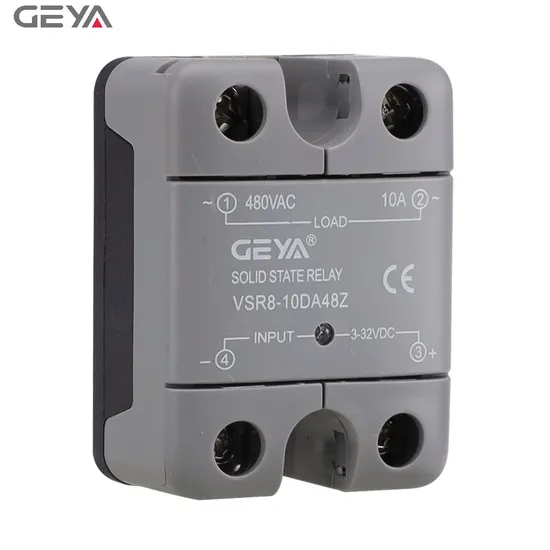

Geya Single Phase DC Control AC DIN Rail Solid State Relay DC to AC SSR Relay Solid State

Product Description

··········This link price is only for VSR8-10DA48Z··········· Product Description Features
1.Rating of 15A,25A,40A,60A,80A,100A and 120A.
2.Output voltage of 24-280VAC, 24-480VAC and 48-660VAC
3.Control votage of 3-32VDC and 90-280VAC.
4.Zero Crossing or Random-on Switching.
5.Integrated IP20 touch-safe removable covers.
6.Dielectric Strength 4000VACrms
7.LED input status indicator.
Product Selection:

Item No.	Current	Control Voltage	Output Voltage
Single phase DC controlled AC (DC to Ac)
VSR8-10DA48Z-VSR8-120DA48Z	10A-120A	3-32VDC	24-480VAC
VSR8-10DA66Z-VSR8-120DA66Z	10A-120A	4-32VDC	48-660VAC
Single phase AC controlled AC (AC to Ac)
VSR8-10AA48Z-VSR8-120AA48Z	10A-120A	90-280VAC	48-480VAC
VSR8-10AA66Z-VSR8-120AA66Z	10A-120A	40-265VAC	48-660VAC
AC solid state Pressure regulator AVP Serie
AVP10GV24/38-AVP120GV24/38	10A-120A	4-20ma	0-240V/380V
Single-phase DC controlled DC(DC to DC)
VDR8-10DD08-VDR8-140DD08	10A-140A	3-32VDC	0-80VDC
VDR8-10DD25-VDR8-140DD25	10A-140A	3-32VDC	0-250VDC
VDR8-10DD60-VDR8-120DD60	10A-120A	3-32VDC	0-600VDC
VDR8-10DD120-VDR8-120DD120	10A-120A	3-32VDC	0-1200VDC
Radiator
VSR-1	For 10A-40A
VSR-6	For 10A-40A
VSR-7	For 60A-80A
VSR-8	For 100A-120A
With heast sink SSR(AC to DC)
GSR8-15DA48Z-GSR8-60DA48Z	15A-60A	4-32VDC	24-480VAC
GSR8-15DA60Z-GSR8-60DA60Z	15A-60A	4-32VDC	48-600VAC
With heast sink SSR(AC to AC)
GSR8-15AA48Z-GSR8-60AA48Z	15A-60A	90-280VAC	24-480VAC
GSR8-15AA60Z-GSR8-60AA60Z	15A-60A	90-280VAC	48-600VAC

Product Parameters

Description	15A	25A	40A	60A	80A	100A	120A
Dielectric Strength, Input to Output [50/60 Hz]	4000Vrms
Dielectric Strength, Input/Output to Base [50/60 Hz]	2500Vrms
Minimum Insulation Resistance [@ 500 VDC]	10^9Ω
Maximum Capacitance, Input/Output	0.8pF
Ambient Operating Temperature Range	-30to80ºC
Ambient Storage Temperature Range	-30to100ºC
Input Terminal Screw Torque Range [in-Ib/Nm]	11-18/1.2-2.0
Load Terminal Screw Torque Range [in-Ib/Nm]	18-26/2-3
SSR Mounting Screw Torque Range [in-Ib/Nm]	11-16/1.2-1.8
Humidity per IEC60068-2-78	95%
LED Input Status Indicator	Red
Housing Material	PBT+30%GF
Baseplate Material	Purecopper
Weight	145g
