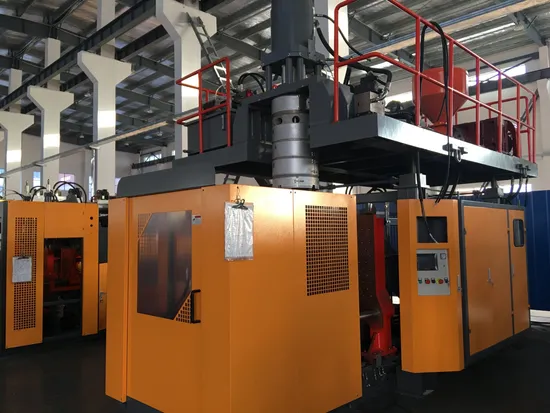

Automatic Extrusion Blow Molding Machine for Plastic Floating

Product Description

4Products: float plastic floating
Power supply: 380/220v 50/60 Hz Tri-phase
Die head number: 1
Suitable raw material: HDPE, PE And So on…
We adopt vertical type accumulating head of FIFO design and fine processing for inner parts. It's easy for changing plastic material or colors, this time can be reduced to 45 minutes. Our customers can save more time and material cost in this work link. Meanwhile, we also can make the accumulating head of double layer, triple layer, view stripe or double layer bestrew co-extrusion. Customers can save plastic material cost or increase the product strength.
The electrical control system includes :
HITECH colorful touch screen,
MISTUBISHI PLC,
/LG/RIKO/MEANWELL/OMRON low voltage electrical components,
DELTA inverters
parison controlling system.

We fix the earth wire connecting, open front door stop, emergency stop button, light curtains and power line insulation barrier to insure the operator's personal safety.

All electric cabinet is equiped with its separate cooling Fan for safety and long time running.
Your samples will be put in 3D measuring machine for making plane drawing & 3D drawing. After your confirmation to product design, the mould structure will be sent to you for negotiation. We use the good metal, hardened material, good design for cold runners to make your moulds. Meanwhile, the installation size matching with clamping unit is also taken into our consideration.

Basic parameters	Suitable material	HDPE,PE…
	Max volume	500L
	Output capacity	300pc/h
	Size	5.8×2.2×4.5 (M)
	Weight	32T
System	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system ,transducer control, self-protect function when started at low temperature ,,
	Reducer	Hard finishing,High intension,Low noise reducer ,,
	Screw	∮120mm,L/D ratio 33, 38CrMoALA 120mm, 33:1,38CrMoALA	Cooling system available
	Plasticization	350Kg/H	HDPE
	Heating Zone	5Aluminum Heater 5	Automatic heating
	Heating power	30 KW/H
	Extrusion Motor	Motor90kw (380V,60HZ)
	Cooling Fan	5zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding ,
	Die head numbe r	1
	Center distance of die heads	/
	Max die mouth	∮520mm
	Heating zone	5 Stainless steel heating cycle 5
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system ,,,
	Clamping force	900KN
	Template distance	1150 X1150mm
	Max mould size	900X1450mm
	Mould material	High grade 50# steel 50#
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) PLC ()(,,,)	Japanese Mitsubishi PLC System PLC
	Operate interface	Touch screen, automatic self-diagnose alarm system ,
	Temperature control	Automatic temperature control module
	Movement control	Japanese Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function ,,
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor (380V/220V,50/60HZ)37kw
	Oil pump	Imported double pump
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	80-100Kg/cm²
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.8Mpa
	Air displacement	1.6m³/min
	Electromagnetic valve	AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system ,,
	Cooling medium	Water
	Water flow	180L/min
	Water pressure	0.3-0.6MPa

GM-0196

---
