| US$300,000.00-1,000,000.00 | 1 set (MOQ) |
| Preparing Stage: 1. DEBARKER:The logs typically retain outer bark and irregular surface layers. By using a debarker to remove the bark and irregularities from the surface of the logs, it enhances the efficiency and quality of subsequent processing. 2. CHIPPER&FLAKING: Used to chip wood into wood chips, usually using rotating cutting tools to chip wood into wood chips of a certain size. 3. DRYER: Remove moisture from wood chips or timber to ensure that the wood reaches the appropriate humidity and moisture content for subsequent mixing, forming, and hot pressing processes | Mixing&Forming Stage: 4. GLUE MIXER: Equipment used to mix wood chips with adhesive and other additives uniformly, ensuring that the mixture has a certain uniformity and moisture content. 5. FORMING: Used to press the mixed wood chips and adhesive into a board shape, usually using continuous or batch forming machines for molding. |
| Trimming&Cutting Stages: 6. TRIMMING: Used to trim and edge the chipboard after hot pressing, to remove possible unevenness and excess adhesive, and to make the surface of the board flat. 7. CUTTING: Cuts the trimmed chipboard into the required sizes and specifications, usually with both cross-cutting and longitudinal cutting methods. | Post-processing Stage: 8. SANDING: By using sanding belts or sanding wheels to process the surface of the particleboard, it becomes smooth and uniform, thus improving the surface quality. 9. SIZING: If it is necessary to coat the surface of the chipboard with varnish or other coatings, a gluing machine may be used. |
| <1> Drum Chipper | |
| Inlet size | 240*750mm(H*W) |
| Blade quantity | 2pcs |
| Knife roll diameter | 800mm |
| Power | 132kw |
| <2> Ring Chipper | |
| Wood strands thickness | 0.4-1.0mm |
| Capacity | 5000-8000kg/h |
| Knife length | 449mm |
| Power | 250kw |
| <3> Triple Pass Drying Machine | |
| Cpacity | 10000kg/h |
| Original moisture | ≤80% |
| End moisture | 2% |
| Power | 440kw |
| <4> Vibrating screen | |
| Screening cloth | 2 |
| Screening area | 12 m2 |
| Screening capacity | 70m3/h |
| Power | 11kw |

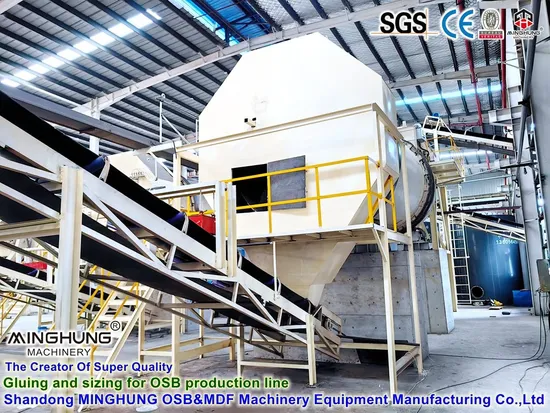

| <5> Gluing | |
| Capacity | 500m3 /per day |
| <6> Forming machine | |
| Surface forming machine | 2 sets |
| Capacity | 2 *45m3/h |
| Core forming machine | 1 sets |
| Capacity | 65m3/h |
| Forming width | 1300mm |
| Forming thickness | 30-120mm |
| <7> Continuous press | |
| Convey speed | 10-30m/min |
| Working height | 1250mm |
| Belt width | 1500mm |
| Power | 75kw |
| <7> Hot press | |
| Pressure | 1200 ton |
| Hot plate size | 2650*1680*120mm |
| Layers | 22 |
| Heating medium | Oil |
| Heating temperature | ≤180ºC |
| Closing time | 10s |
| <8> Sanding machine | |
| Max sanding width | 1300mm |
| Sanding thickness | 3-50mm |
| Sanding belt size | 1350*2800mm |
