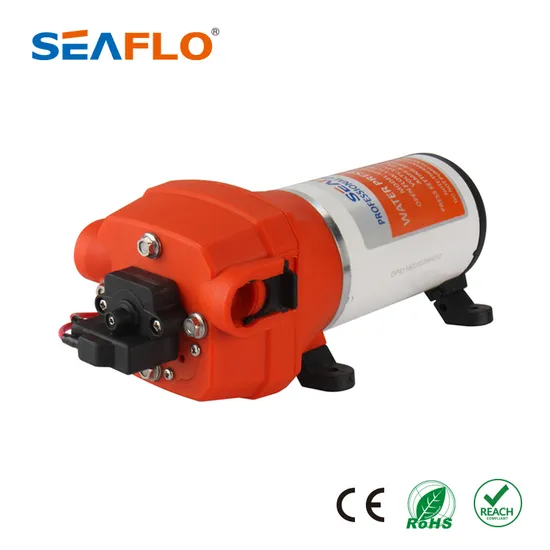

Seaflo Portable 12V DC Self Priming Water Pump for Home

Product Description

SEAFLO 12v dc self priming water pump
Application
1. Agriculture/Yacht / RV/Caravan pressurized water system
2. Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
3. Food beverage filling & liquid transfer
4. Any other pressurization system
How a Diaphragm Pump Works
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragmbehind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

PUMP
Type	4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type	Pressure switch & By pass control
Max Recommended Temperature	60° C(140° F)
Priming Capabilities	6 feet (1.8 m) suction lift
Re-start Pressure	Shut-off Pressure 40PSI :30 PSI ±5 PSI(±0.3 bar)
Inlet/Outlet Ports	3/4"QUICK ATTACH
Weight	5.4 lbs (2.4 kg)

STANDARD PUMP CONFIGURATIONS

Model	Voltage	Open Flow (GPM/LPM)	Control Type	Max Draw	Shut-off Pressure (PSI/BAR)	Valves	Diaphragm	Ports	Wire Connections
SFDP1-045-040-41	12V	4.5 / 17.0	switch & By pass	15.0	40 / 2.8	EPDM	Santoprene	QUICK ATTACH	2-Pin/Leads
SFDP2-045-040-41	24V	4.5 / 17.0	switch & By pass	6.0	40 / 2.8	EPDM	Santoprene	QUICK ATTACH	2-Pin/Leads

SHIPPING INFORMATION

	Unit Pump Weight	5.36 lbs (2.43 kg)
	Selling Unit Size (L x W x H)	13.78" x 5.19" x 4.33" (35 x 13 x 11 cm)
	Selling Unit Weight	5.99 lbs (2.72 kg)
	Master Carton Size (L x W x H)	26.38"x 12.8 " x 10.04" (67 x 32.5 x 25.5 cm)
	Master Carton Qty	10 pcs
	Master Carton Weight	61.73 lbs (28.01 kg)

FAQ 1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.
2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.
3. Can I buy different types in one container?
Yes, you can mix different types in one container.
4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!
5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.
6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.
7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.
8. What is your port of loading?
Fuzhou & Xiamen Port.

---
