Concrete Cement Spaying Shotcrete

Product Description

Concrete cement spaying shotcrete

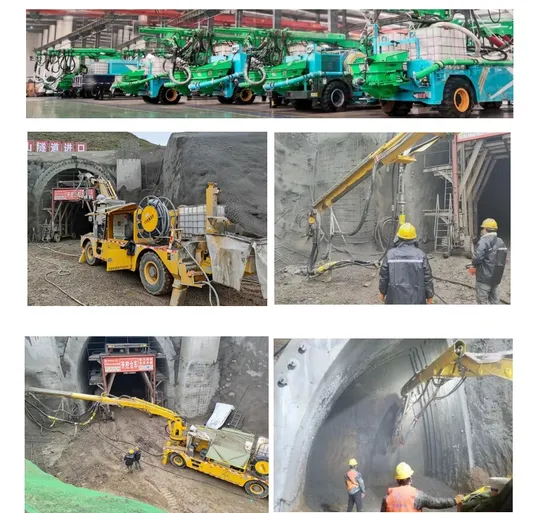

GP3515F Integrated Shotcrete Jumbo Integrated Rubber wheel type with Built-in Compressor
Product introduction GP-3515 engineering concrete wet spraying jumbo is newly developed cost-efficient product to adapt to the current tunnel construction. It is an electro-hydraulic integrated concrete spraying equipment which has absorbed the advantages of domestic and foreign famous brand products in design and manufacturing. The performance parameters have reached and exceeded the level of similar international products. The key parts of the engineering concrete wet spraying jumbo adopt international and domestic well-known brand products. The electrical system has PROFINET technology, and the engineering machinery controller based on the embedded system is the core. It is a real-time, effective, and flexible new control system that realizes the integration of electromechanical and hydraulic control. It is fully responsible for the engine, hydraulic pump, hydraulic control valve and the composite control of the whole machine detects and protects the engine, hydraulic system and working state in real time, thus ensuring the high reliability and high stability of the whole machine. Meanwhile it is equipped with 90kw air compressor which suit for altitude no more than 2000m, no need external air source. Through our sell-developed "cloud-platform" technology, we can do remote diagnosis of the machine, and realize the maintenance&repair reminder etc. GP-3515F engineering concrete wet-spray jumbo has excellent structure, firmness and strong impact resistance. There are no blind spots in the construction of the working arm; the advantages of high construction efficiency fully reflect the company's tenet of "make construction easier". It mainly used for railway, road construction, slope support, tunneling projects, hydro-power engineering, building foundation pit, miltary and civil underground engineering etc.
Main technical specifications
Dimension(L×W×H): 7910×2645×3270mm
Total weight: 17t
Pumping system:
Theoretical spraying displacement: 35 m3/h
Main oil cylinder diameter: ф100mm
Concrete cylinder diameter: ф180mm
Concrete cylinder stroke: 1000mm
Conveying pipe diameter: ф125~ф90 (reducing)
Maximum aggregate size: ф15mm
Outlet pressure of concrete: 83bar
Hopper volume: 0.3m3
Traveling system:
Travelling mode: wheel type
Steering: Front wheels
Drive mode: 4 wheels drive
Minimum turning radius: 11.4m
Engine: 97kw
Wheelbase×Wheel tread: 4400×1887mm
Traveling speed I/II/III/IV: 5/10/17.5/20 km/h
Minimum ground clearance: 300mm
Maximum gradeability: 36% (20°)
Braking distance: 5m(20km/h
Mechanical Boom:
Maximum spraying height: 7.4m downward, 15.8 upward
Maximum spraying width: ±13.5m
Big boom rotary angle: 270°
Rotary angle around the nozzle: +/-180°
Left-right turn angle of nozzle: +/-120°
Brushing angle of the nozzle: 8°(consecutive)
Swing angle of nozzle: 8°(consecutive)
Minimum spraying tunnel size: 4m
Accelerator system:
Accelerator pump model: YD25R
Driving mode: Variable frequency motor drive
Accelerator displacement: 1000L/h
Maximum outlet pressure: 12bar
Accelerator tank volume: 1500L
Electrical system:
Cable size: 3×95²
Cable length: 80m
Electric parameter: 440V/60Hz
Hydraulic system:
Main motor power: 55kw
Oil tank volume: 390L
Degree of hydraulic oil pollution: NAS1638-9
Main pump displacement: 145 ml/r
Cleaning system:
Water pump model: 3WZ-1814HM
Water tank volume: 200L
Drive mode: hydraulic
Air compressor:
Motor power: 90kw
Flow rate: 15.1m3/min
Exhaust pressure: 0.7Mpa
Spraying trajectory Horizontal Spray: The mechanical boom can rotate 270°in the horizontal direction. It adopts two-stage telescoping, the extended length can reach up to 12m and the maximum spray diameter is about 27 meters
Tramming status

---
