Professional Manufacturer Energy-Saving Super High Speed Two 3 Layer Blowing Extrusion PE LDPE HDPE Plastic ABA Blown Film Machine

Product Description

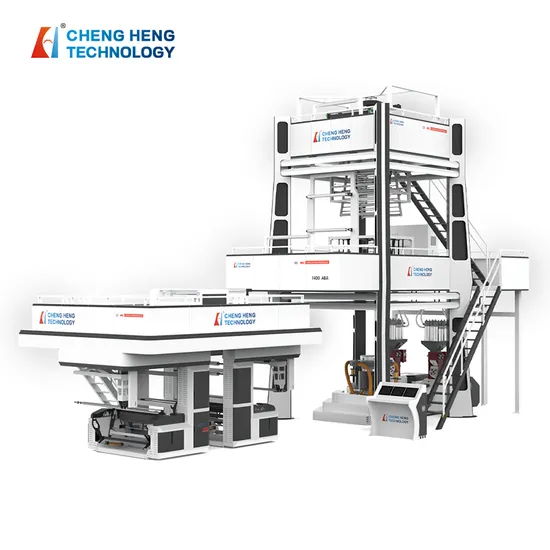

New Arrival High Speed ABA Film Blowing Machine Product Description
This aba blown film machine is a new design for our company.High Speed ABA/AB LDPE Film Blowing Machine is a high-performance extrusion equipment that is efficient,stable,and energy-saving.It adopts ABA three-layer co-extrusion technology and can produce high-quality composite films with excellent physical properties and high transparency.It is widely used in the packaging,agriculture and construction industries.
Product Parameters

Model	65/65-1600/1800	75/75-2200/2400	90-90/2600/2800	100-100/3200
Width of the film	1000-1400mm/1600mm	1200-2000mm/2200mm	1400-2400mm/2600mm	2000-3000mm
Thickness of the film	LDPE:0.02-0.15mm
Output	100-250kg/h	120-300kg/h	140-420kg/h	160-500kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE LDPE LLDPE CACO3 RECYCLING
Diameter of screw	Φ65/65	Φ75/75	Φ90/90	Φ100/100
L/D ratio of screw	32:1 (With force feeding)
Gear box	200# *2	225# *2	250#*2	315#*2
Main motor	37kw*2	45kw*2	55kw*2	75kw*2
Die diameter	Φ350mm	Φ500/550mm	Φ550/650mm	Φ750mm

Detailed Photos

Certifications
Customer Approval

Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou. The company covers an area of 22,000 square meters. We have a modern intelligent operation workshop, specializing in the research, development, production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery. The company has a number of senior industry technical experts and after-sales service person to provide customers with high-quality one-stop
services. According to the needs of customers, professional and technical experts can carry out overall supporting program planning, and are committed to providing customers with a complete set of perfect first-class equipment and technical services. With its high-quality and professional service team, the company has won high praise from customers for its high-quality and low-cost products and considerate services, so that the products are exported to Central Asia, South America, the Middle East, Southeast Asia, Africa and other countries.
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.

---
