5hw Turret Milling Machine

Product Description

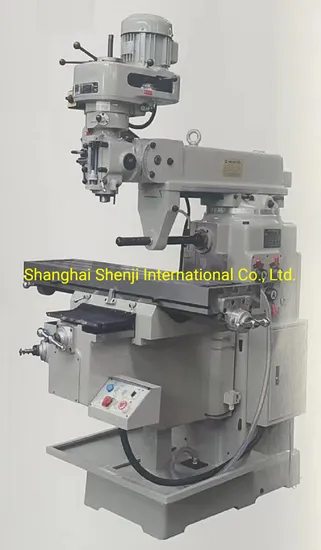

5HW Turret Milling Machine
Milling Machine main performance characteristics:
1. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4. Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5. Many parts of the machine tools have been applied for patent

Model	4H	5H	5HW
Table size	254 x 1270 mm	305X1370mm	305X1370mm
Long travel	780 mm	780mm	800mm
Cross travel	420 mm	420mm	420mm
Vertical travel	420 mm	420mm	420mm
T-slot No and size	3 x 16x80	3x16x80	3x16x80
Distance from spindle nose to table surface	80 - 400 mm	80-480mm	150-480mm
Spindle hole taper	R8	R8	R8
Spindle speed	75 - 4550 r/min	75-4550r/min	75-4550r/min vertical 45-1350r/min horizontal
Distance center spindle to guide way	100-650mm	100-650mm	100-650mm
Spindle motor	2.2 kW	2.2 kW	2.2 kW
Head swivel	90°	90°	90°
Head tilting	45°	45°	45°
Packing size	157 x 165 x 210 cm	180 x 175 x 230 cm	193 x 175 x 230 cm
Weight	1300 kg	1600 kg	1600 kg

---
