Automatic Poultry Farming Equipment Chicken Broiler Ground Raising

Product Description

Automatic poultry farming equipment chicken broiler ground raising
(Brand:U-Best)
U-Best Husbandry Equipment Co.,Ltd is located in the cultural World Kite Capital Weifang,China,whare enjoys convenient access to major transportation networks.Our company specializes in the collection of animal husbandry equipment research& development,manufacture,sales installment,overall design and after-scale maintenance in the integration of modern comprehensive import and export service.We are pursuing to be the most visible and valuable animal husbandry equipment solution provider worldwide.
Our poultry farm equipment including:Automatic main feed line system,Automatic pan feeding system,Nipple drinking system,Environment control system,Ventilation system,Cooling pad system,Fogging system,Heating system and Curtain system.

1.Automatic main stock feeding system:
This system convey feed through the rotation of helical spring of helical spring auger,including main feed line and pan feeding line.
(1) Automatic main feed line:
Silo/manpower hopper is the beginning of main feed line.There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.

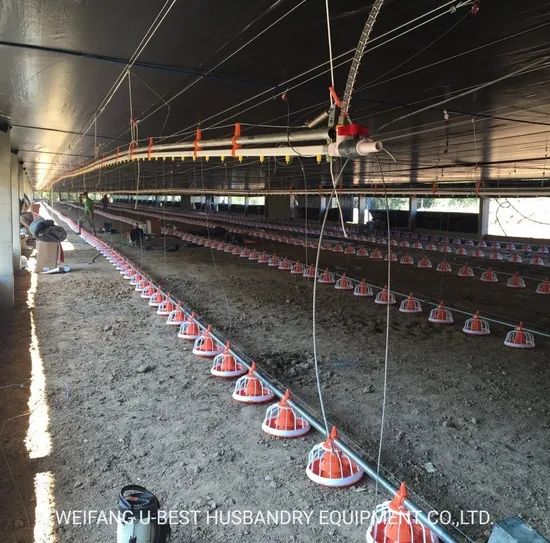

(2) Automatic pan feeding line:
There is a feed sensor at the end of each feeding line which control motor on and off to achieve automatic feed delivery.

Equipment length	0-60m	60-80m	80-100m
Single Phase	0.37kw	0.75kw	0.75kw
Three Phase	0.37kw	0.37kw	0.75kw

2.Nipple drinking system:
Main part of the system:filter,pressure regulator,nipple drinking line,lifting and suspension system,electric shock system etc.
Nipple for the system,use good quality engineering plastic for outer,for the inner,we use good quality stainless steel.All nipples are anti-rusting,services life over 10 years.Double-sealing structure,with good seal ability,can avoid leaking water and avoid to effect the chicken house for leaking.Valve rod is movable in 360 degree,it is suitable for all chicken to drink.
We also have Plasson alumunium alloy support tube drinking system and Germany Lubing alumunium alloy support tube drinking system.
3.Ventilation system:
Including ventilation fan ( 50'' cone fan and 50'' Axial flow fan,36'' cone fan and 36'' Axial flow fan) and air inlet windows.

Model	Blades diameter	Blades rotational speed(rpm)	Air Flow(M3/H)	Noise decibels(DB)	Input power	Height(mm)	Width(mm)	Thickness(mm)
UBT-750	600(24in)	960	10600	<70	370w	750	750	510
UBT-1000	910(36in)	438	21000	<65	550w	1000	1000	450
UBT-1380	1270(50in)	438	44000	<65	1100w	1380	1380	450

4.Automatic environment control system:

Environment controller has:Israel Agrologic brand:T607,T610,T616 ,Image2 and Israel Retom brand AC2000Plus,Environment controller can control ventilation fans,cooling pad system,heating system,fogging system ,air inlet windows,curtain system.
Power control box has protection device can protect all motors and sensors.
5.Cooling pad system:
The longitudinal way of cooling-fan ventilation way is the most economical and effective way to reduce temperature of chicken house in summer.
Cooling pad paramters:Thickness 100mm,150mm.Width 300mm,600mm.Height 1660mm,1960mm,2160mm.
6.Fogging system
It is effectively tools for cooling,damping,dedusting and disinfecting the house.
Including spraying and desinfecting system engine,fogging lines (spraying and desinfecting system accessories).

7.Heating system:
Heater type:Systel gas heater,DAMLY gas brooder,Remington diesel heater,etc.

8.Curtain system:
Up and down type curtains,better control poultry house temperature and reduced cold stress.
Peripheral anti-sway system,better sealing and overall stability.
The curtains are supported by galvanized pipes and are equipped with curtain clips for smoother lifting and better flatness.
PVC (around 500g) and PE woven fabrics,two kinds of curtain fabrics for you to choose.

Poultry farming equipment advantage:
A.Time saving&labor saving, 1 farm just need 1 worker;
B. Increasing survival rate;
C. Save feed&water;
D. Automatic controlling the raising environment;
E. Easy to operate, install, disassembly and clean;
F. 20-year service life, 12-month warranty

---
