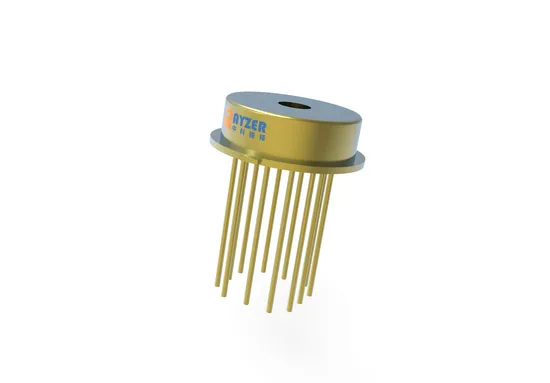

500um InGaAs APD Preamplifier Module
CR500AH-1550-70M-00
Product Description The CR500AH- 1550-70M-00 includes a 500um InGaAs Avalanche Photodiode with a hybrid preamplifier for the use in high speed, ultra-low light detection, laser range finding, LIDAR and free space communication.
Features
Built in 500um InGaAs+TIA
High sensitivity:≥250kV/W
High bandwidth:70Mhz
Wavelength range:1100~1700nm
Low noise and high reliability
TO8 package with flat window
Applications
LIDAR
Laser range finding
Free space optical communication (FSO)
Absolute Maximum Ratings

Parameter	Unit	Symbol	Rating
Reverse breakdown voltage	V	VR	VBR
Operating temperature	ºC	TC	-40 ~ +85
Storage temperature	ºC	TSTG	-55 ~ +100
Maximum optical input power	mW	Pin	100
Module mains voltage	V	Vcc/VEE	±6
Power dissipation	mW	Pw	250
Soldering temperature(time)	ºC	-	300 ( 10s)

Optical/Electrical Characteristics (T=25C,unless otherwise stated)

Parameter	Symbol	Value				Unit	Test conditions
		Min	Typ		Max
Response Spectrum	λ	1100~1700				nm
Active Diameter	D		500			um
Reverse breakdown voltage	VBR	30			70	V
Operating voltage	VR	VR-3				V	M=10
Responsivity	RV	250				kV/W	M=10, 1.55um@τ=100ns
Dynamic range	DY	25				dB	M=10, 1.55um @τ=100ns
-3dB bandwidth	BW			70		Mhz	M=10, 1.55um @τ=100ns

Rise/Fall time	tr		5			ns	M=10, 1.55um @τ=100ns
Noise Equivalent Power	NEP		230			fW/√Hz	M=10 ,f=100kHz, △=1hz
Output impedance	RO		50			Ω
Output Voltage Swing	VO	0.7				V
Positive Supply Current	ICC				30	mA
Negative Supply Current	IEE				10	mA	50Ω Load
Temperature sensor sensitivity	α	-1.8	-2. 1		-2.4	mV/oC	-55ºC~+85ºC
Temperature coefficient of Vop for constant gain	γ		0.14			V/ oC	-45~+20ºC
			0.11				+20ºC~85ºC
Concentricity	△D				20	um

Order information
CR500AH-1550-70M-00

CR1-2-3-4
1 High Responsiveness Target Surface	2 Spectrum Response	3 Responsive Bandwidth	4 Customization Requirements
200AH: 0.2mm 800AH: 0.8mm 1000AH: 1.0mm 3000AH: 3.0mm …	1550: 1550nm 1064: 1064nm 940: 800~940nm …	30M: 30MHz 50M: 50MHz 70M : 70MHz 100M: 100MHz …	00:NO LN: Low noise …

Note:The laser module are ESD-sensitive devices. Please insurw that proper ESD handling procedures are followed.
