SPECIFICATION
|

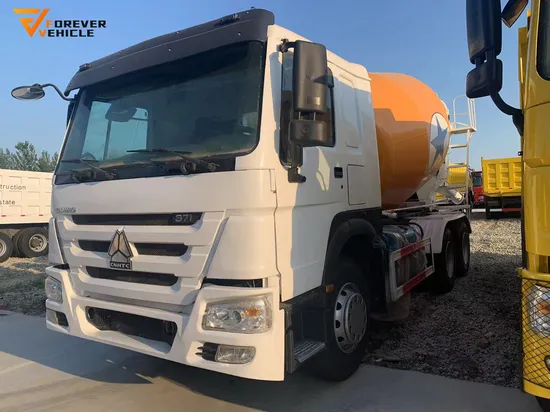

SINOTRUK USED HOWO TRUCK 6X4 371HP CONCRETE MIXER TRUCK
|
Model
|
|
Traction
| 6X4
|
Driving type
| LHD (RHD is option)
|
Cabin
| HW76 Cab, with one sleeper bed, two seats, with A/C
|
| Type
| Forward control cab, hydraulically tiltable by 60°
|
| Construction
| Current standard all steel construction
|
Engine
| Brand
| SINOTRUK
|
| Model
| WD615.47 371hp
|
| Displacement
| 9.726 L /Diesel
|
| Max. output
| 371hp@2200rpm
|
| Max. torque
| 1500Nm @1100-1600 rpm
|
Gear box
| Model
| HW19710
|
| Brand
| SINOTRUCK
|
| Type
| 10 Forward& 2 Reverse
|
Clutch:
| Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance
|
Steering
| Model
| ZF8098
|
Tyre
| Tyre
| 12.00R20 Tyres
|
Fuel tank
| 300L Iron Tank with locking fuel cap, fitted to the off side of the chassis
|
Front axle:
| HF9 tons front axle with drum brake
|
Rear axle
| HC16 16tons
|
Mixer Body
| Mixer Capacity: 8cbm,9cbm,10cbm,12cbm,16cbm,20cbm
|
