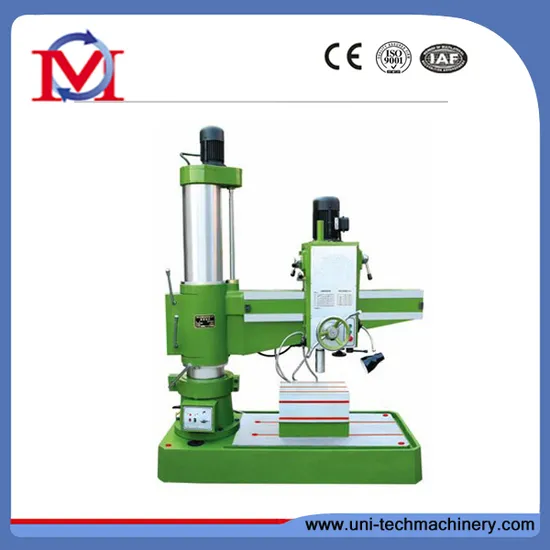

Chinese Manufacturer 40mm Drilling Capacity Radial Arm Drilling Machine (Z3040X10)

US$3,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040X10
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Drilling Dia(Steel/Iron)(mm)
35/40
Distance Between Spindle to Column(mm)
280/1290
Horizontal Movement of Spindle Box (mm)
1020
Distance Between Spindle to Base(mm)
235-1100
Spindle Travel(mm)
195
Spindle Taper
Mt4
Spindle Speed(6steps)(R/Min)
38-947
Max Feed Resistance of Spindle(N)
6300
Radial Turn Angle
360°
Main Motor(Kw)
3
Transport Package
Wood Case/Plywood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
100sets/Month

Product Description

Product Description
Chinese manufacturer 40mm drilling capacity radial arm drilling machine(Z3040X10)
Main Features:
Inner-outer column.
Mechnical clamping for the column and mechincal Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.

Product Parameters
Specification:
Model Z3032X10 Z3040X10
Max.Drilling capacity (mm) 32 40
Distance spindle axis to column generating line (mm) 200-1000 200-1000
Diameter of column (mm) 240 240
Spindle taper MT4 MT4
Spindle travel (mm) 250 250
Spindle speeds range (r/min) 71-1800 71-1800
Spindle speeds series 8 8
Range of Spindle feeds (r/min) 0.13-0.54 0.13-0.54
Mpindle Spindle feeds 4 4
Max.Distance spindle nose to working surface of base (mm) 264-1064 264-1064
Dimension of worktable (mm) 400X450X400 400X450X400
Dimension of base (mm) 1500X740X160 1500X740X160
Overall Size (mm) 173X75X236 173X75X236
Power of Main motor (kW) 2.2 3
G.W/N.W (kg) 1600/1530 1600/1530
Packing dimension (cm) 187X97X220 187X97X220

Standard Accessories:
1.Box shape worktable
2.Taper Sleeve
3.Tool releasing wrench
4.Drift
5.Eyelet bolts


Optional Accessories:
1.Quick change chuck
2.Tapping Chuck
3.Grease Gun
