High Standard and Good Quality Jch Roofing Metal Steel Roll Forming Machine

Product Description

Product Description
JCH in color steel plate refers to a specific design of the edge of the plate, that is, a specific bending or folding angle.
This design can increase the strength and structural stability of the color steel plate, while also helping to prevent
rainwater and other external factors from invading, ensuring durability during use.
Product Parameters

Roller flatting system	let the feeding fluently
Size	8000mm*1200mm*1400mm
Machine under frame	300H-beam
Sidewall plate thickness	16mm
Shaft diameter	70mm
Main shaft material	45# steel with finish turning
Roller material	45# Forging Steel with Chromium Plate
Chromium plate thickness	0.05mm
Motor power	5.5 kw
Roll forming speed	15m/min (Adjusted with frequency changer)
Voltage	3phase/380V/50Hz(Can be customized according to customer requirements)
Hydraulic pump station	5.5kw
Cutting blade material	Cr12 with quenched treatment 58°C-62°C.

Detailed Photos
Among building materials, JCH 470 color steel tiles are a common type of roof tile. It is made of color coated steel plate, which is cold-formed into various wave shaped profiled plates by rolling, and has the characteristic of vertical locking seams. This type of tile is currently one of the most commonly used and popular roof tile types internationally.

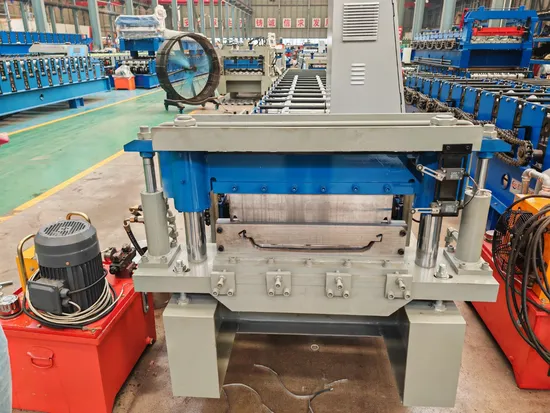

Cutting system
Hydraulic punching and shearing, no burrs or deformation.

Roll forming rollers
High-precision rolled shaft, roll forming, selected high-quality steel, fast forming speed, safe and efficient, zero waste.

Feeding platform
The hand wheel can adjust the material opening, and the width can be adjusted easily, and the roller plate prevents scratches.

Hydraulic system
The equipment is well processed and operates stably.3 kilowatt pump station hydraulic station pressure is 10-12mpa 46# hydraulic oil.

Automatic Control System
Adopting programmable PLC control system and frequency converter speed regulation, the operation is simple and easy to use

Practical application
Certifications

Company Profile
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

---
