Z14 Foundry Sand Molding Machine

Product Description

Z14 Foundry Sand Molding Machine

Company Introduction:
Our company offers variety of products which can meet your multifarious demands.We adhere to the management principles of "quality first, customer first and credit-based"since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
Product Introduction:
Sand molding machine is suitable for mass production of small castings.The machine adopts microseismic squeeze mechanism, the squeeze force and compression strength design is relatively large, so it can meet the requirements of simple or complex type without presqueeze.
Advantages:
Improve sand compactness, reduce waste, reduce labor intensity, improve work efficiency, etc.
The air system is simple, easy to operate, flexible, easy to use, repair and maintenance.
Composition:
The machine is composed of the machine body, mould drawing mechanism, vibration and compaction mechanism, tumbler head part and pneumatic pipeline system, etc.
Feature:
Microseismic compacting moulding machine can make moulding board, sand box and moulding sand vibrate at high frequency and small amplitude while moulding sand is compacted.
When the sand box is filled with loose molding sand, there are still many gaps between the sand grains. At this time, the formwork is directly vibrated to transfer energy to the sand grains, so that they can find a new balance position in constant movement, thus filling the gaps and improving their compactness.
When additional vibration is added during the compaction process, in addition to the above action, the external friction resistance between sand grains and the inner wall of the sand box can be reduced, further increasing the compaction effect.
Therefore, additional vibration can significantly improve the phenomenon of real-time compaction.
Because microseismic can improve the fluidity of molding sand in the process of compacting, higher average compactness and more uniform compactness distribution can be obtained with the same compactness ratio.
Microseismic compaction molding machine can not only be in the compaction at the same time microseismic, and in the process of sand can also be microseismic, that is, the so-called pre-compaction.
This can increase the amount of sand filling in the sand box and improve the uniformity of the original compactness and compactness of the sand mold.
It can reduce the height of the prefill and the travel of the compacting piston, especially for the high sand box or complex model.
Technical Parameters:

Sand Molding Machine	Z143	Z145	Z146	Z147	Z148	Z149	Z1410E	Z1412
Worktable dimension	600*420mm	600*460mm	700*560mm	880*700mm	930*720mm	1160*800mm	1400*1030mm	1500*1060mm
Compaction stroke	140mm	160mm	160mm	160mm	200mm	200-220mm	200-220mm	200-220mm
Jolting load	200kg	300kg	300kg	450kg	650kg	1000kg	1350kg	1500kg
Strip mold stroke	160mm	200mm	220mm	250mm	300mm	350mm	350mm	450mm
Productivity	40-60box/hr	40-60box/hr	40-60box/hr	40-60box/hr	40-60box/hr	40-60box/hr	50box/hr	50box/hr
Consumption of free air	0.25m³/box	0.4m³/box	0.4m³/box	0.4m³/box	0.5m³/box	0.5m³/box	0.6m³/box	0.6m³/box
Outline size	820*650*1310mm	900*650*1600mm	1000*750*1700mm	1500*900*1700mm	1800*950*2100mm	~1860*1200*2230mm	~2085*1400*2520mm	~2135X1500X2760mm

The worktable size can do customized as request.

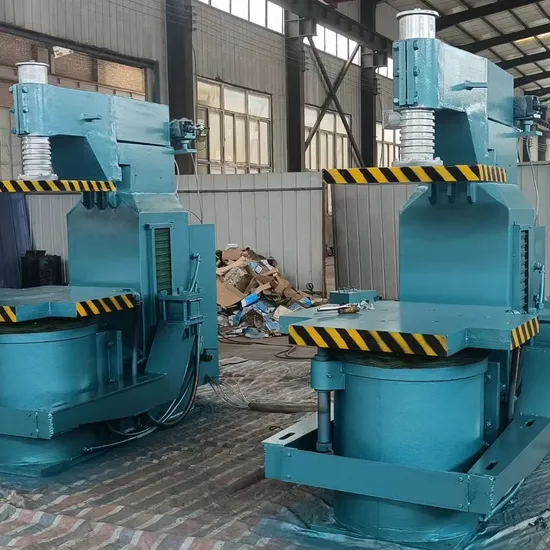

Pictures For Reference:
FAQ:
Q:How many days do you need to produce this machine?
A: Usually 15-25 days,it depends on the machine and power mode,
customized type will be 30-45 days,for production line equipments will take 2-3 moths.
Q: How to control your quality ?
A:First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.For the smaller machine we will install the machine at our workshop to make sure it can work well.For the bigger machine, we will install the machine for our customers until it can work well.
Q: What's your machine quality guarantee?
A:Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you install the machine overseas?How long will it take?
A: Yes,we can arrange the engineer to come to help install,need to pay accordingly,like round trip tickets,salary,living and eating,etc.Time depending on the equipment your order,usually 30-60 days.

---
