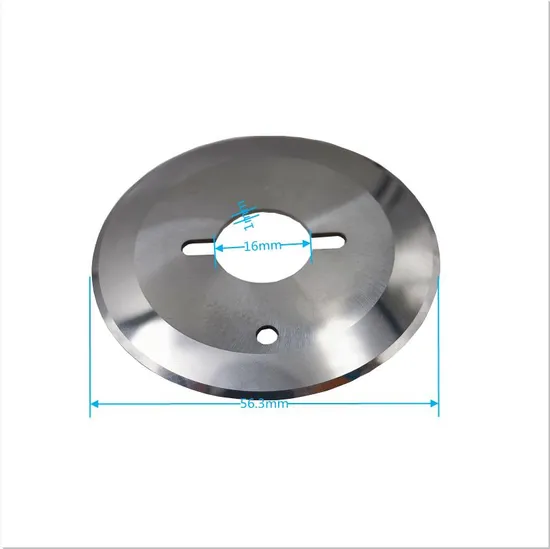

108*10*1.2mm SKD-11, High Speed Steel etc Circular Slitting Knife 56.3*16*1mm

Product Description

108*10*1.2mmTungsten steel cut cloth Round knife

Specifications	Customized
Material	Tungsten Carbide(YG12),SKD-51,W6Mo5Cr4V2,D2 and so on
Advantage	Burr-free, Widely Applied
Thickness	0.8-1.5mm, Customized thickness available
Inner diameter	25.4, 32, 38mm
Outer diameter	OD160 - 610mm, customized size is available
Knife edge	45 °,could be adjusted according to your requirement
Design	single edge and double edge are available
Appliacation	Paper, film, foam, rubber,foil, graphite and so on

Standard size( Customized size is available)
Specification	Outer diameter	Inner diameter	Thickness	Knife edge type	Material
Disc type knife
75x45x1.2	Φ75	Φ45	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
90x60x1.2	Φ90	Φ60	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
105x70x1.2	Φ105	Φ70	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
105x75x1.2	Φ105	Φ75	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
110x75x1.2	Φ110	Φ75	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
Flat round knife
80x40x1.0	Φ80	Φ40	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
90x60x1.0	Φ90	Φ60	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
120x40x1.0	Φ120	Φ40	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
half cut-off slitting knife
70x50x1.0	Φ70	Φ50	1.0T	double side	YG12/SKH-51
80x50x1.0	Φ80	Φ50	1.0T	double side	YG12/SKH-51
100x60x1.0	Φ100	Φ60	1.0T	double side	SKH-51

High-quality raw materials
Materials are the foundation of products, and the company cooperates with many domestic and foreign suppliers of honest materials. In order to ensure the quality, the raw materials are subjected to multi-layer sorting, the materials are stable and the quality is consistent.
Vacuum heat treatment
Heat treatment is the "soul" of the product and the key to the product. The company took the lead in introducing the "vacuum heat treatment" technology. The blade is not deformed, and the hardness, toughness and wear resistance of the product reach the best
Imported high precision CNC equipment
Professional grinding masters and independent research and development team to meet various customer needs. The product undergoes multiple processes, professional grinding and polishing, and excellent workmanship. The precision of imported equipment can reach ±0.01-0.02mm. It has made outstanding contributions to the medical, lithium battery, film adhesive and other industries.
Testing equipment
The company uses optics, radiographic flaw detection and other technologies for product inspection, and each product can be put into the warehouse after passing the inspection.
package and transportation
we will pack the blades according to different kinds of blades to blades to avoid any damage.during transportation,please handle gently.
Our Company
Suzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around
6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing
equipment which are used in processes from raw material to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
