High Speed Door PVC Fast Rolling Shutter Polyester Fiber Door Curtain

US$1,000.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
PH-S1
Type
Rolling
Open Style
Rolling
Opening Type
Electric Control Box
Special Function
High Speed
Color
Red
Certification
ISO9001, CE
Position
Industrial
Door Curtain
Polyester Fiber Base Fabric
Motor
220/380V 50Hz 750W
Opening Speed
0.8-1.2m/S
High Frequency on
1000-1500 Times/Day
Door Box
Galvanized Steel
Transport Package
Shipping Crate
Origin
China

Product Description

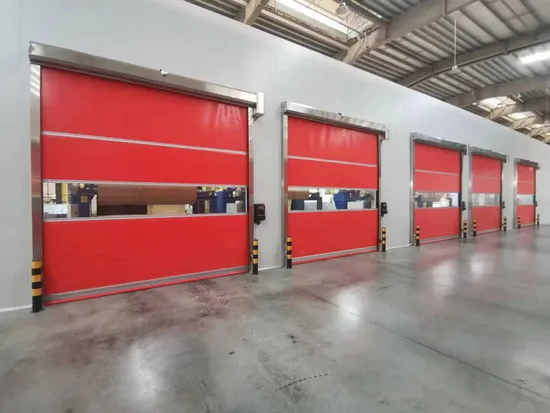

PVC HIGH SPEED DOOR
Pvc high speed door, the door body is made of PVC fabric with self-extinguishing grade, galvanized steel frame door frame and high speed motor. Its opening speed is faster than that of general industrial doors,with a maximum opening speed of 2 m/s.Due to the sealed KPPM in the door gauge and the tightness of high-grade PVC raw materials,the sealing performance and thermal insulation performance of fast doors are better than other industrial doors.Significantly improved

Product Details

Part Name Configuration
Curtain material -The material of the perspective window is PVC film; it is not easy to age, does not deform, has good frost resistance, and does not dry in winter
-The main part of the curtain is 0.8-1.2mm thick industrial polyester fiber base fabric, high strength environmental protection polyester fiber, double-sided polyvinyl chloride coating, which has special fire resistance. Double-sided self-cleaning coating, multiple color options (yellow, red, blue, silver gray, etc.
-The curtain fabric is a cassette type segmented type, which is convenient for replacement
-Tear resistance: 900N/800N (warp/weft), tensile strength: 5700/5100N/5CM, wind resistance:15-20m/s
Door box -The door box is steel cold-rolled sheet, galvanized sheet weathering spray plastic processing
Door opener -Special high-speed door frequency conversion motor (can be customized for rare earth permanent magnet special brake servo motor)
-The power supply is 220/380V, the power is 0.75kw, 1500S/rev, and it bears a large load S4 type
-Opening speed: 0.8-1.2m/s (customizable opening speed up to 2m/s)
-Closing speed:0.6-08m/s
-High frequency opening: 1000-1500 times/day
Control System -High-speed door dedicated frequency conversion system control
-Frequency conversion and intelligent logic circuit
Security protection system -Infrared security system, effectively guarantee the safety of traffic
Track Wall thickness 2.0mm galvanized rail, 3 million polymer materials

FAQ
Q1: What is the minimum order quantity for the product?
A: There is no minimum order quantity for our products. We also recommend using wooden crates for protection during shipping.

Q2:Sizes and application scenarios of various products in our factory?
A:We will provide customers with professional suggestions and drawings based on their needs to provide them with the best solutions.

Q3:Can I get industrial door samples for quality checking?
A: There are samples.

Q4:How do I get a price for the product I need?
A: Please give the exact size and quantity of the product you need. We can provide you with a detailed quotation plan according to your requirements.

Q5:What payment terms will you accept?
A: We usually accept T/T.

Q6:We would like to be your agent in our area. How to apply for this?
A: We very much welcome you to become our agent. Please send us your ideas, company or personal information via email. let's work together.

Q7:Can you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide regular size quotation.

Q8:Is it convenient to visit your factory?
A: Yes, our factory is only 2.5 hours drive from Shanghai Airport. Here you are welcome to visit our factory and taste local food.
