US$8,500.00-15,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Automatic Grade
Semiautomatic
Certification
GS, CE, ISO 9001
Specification
1300cm*1650cm*1700cm
Production Capacity
10 Units Per Month
Product Description

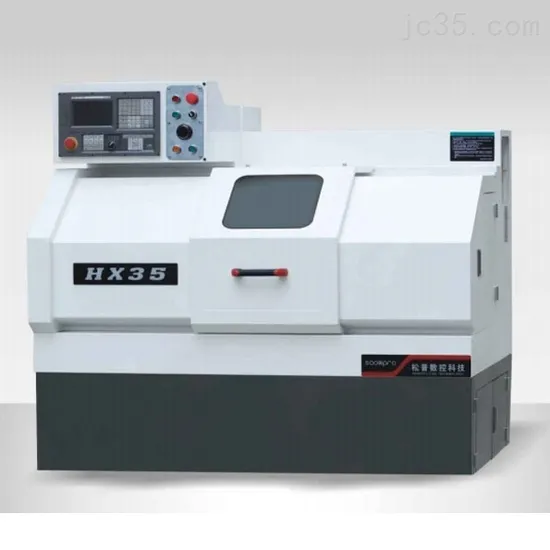

HX35 CNC multi-axis :
Can process all kinds of complex shape parts, can use spring chuck, chuck and jig.
High precision and rigidity, modular design, can be installed on demand, electric tool holder.
High cost performance, superior cutting ability, to achieve high production
HX35 NC multi-axis technical parameters:
Product Description
| Specification | Units | HX35 |
| Guide Rail form | / | linear |
| Spindle through hole diameter | mm | Ф49 |
| Max bar diameter | mm | Ф40 |
| Spindle end form | / | A2-5 |
| Spindle quantity | spindle | 1 |
| Spindle wheelbase | mm | / |
| Taper of spindle bore | mm | 42° |
| Drilling and milling power head | / | optional |
| clamping way | / | Pneumatic/Hydraulic (optional) |
| Spindle shift | | Pneumatic/Hydraulic (optional) |
| Spindle speed | rpm | 0-2500r/min(4000r/min) |
| Main motor power | kw | 4/5.5(optional) |
| Swing over bed | mm | Ф320 |
| Swing over carriage | mm | Ф100 |
| X/Z Max travel | mm | 300/350 |
| X/Z Rapid speed | mm/min | 15000/18000 |
| Dimensions of tool table | mm | 550×260 |
| Foot size | mm | 1000×680 |
| Linear guide's span | mm | 270 |
| The width of the head | mm | 450 |
| Tool post form | / | Tool rest/Electric Tool Rest (optional) |
| Tool dimension | mm | The square dimension of the outer round tool is 20×20 |
| mm | Boring tool diameter of 20 |
| Tail stock travel | mm | / |
| Taper of tailstock quill | / | / |
| weight | KG | 1200 |
| overall dimension | mm | 1300×1650×1700 |
>>
