Infant Formula Milk and Baby Food Single Shaft Paddle Ribbon Mixing Mixer Blender Equipment

Product Description

Product Description Product Description

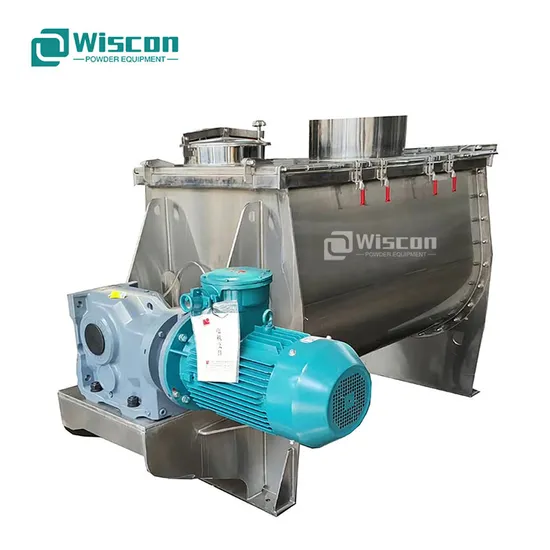

The ribbon blender is versatile blending equipment with high efficiency, uniformity, and low crushing. Its double ribbon agitator
can make the materials well mixed in a short time, ribbon blender shows a wide application for mixing dry powders, granules,
and viscous pastes homogeneously.
Applicable Materials
Mixing of dry, paste, and Solid-Liquid Suspensions
Typical Application
Bakery premixes cosmetics, instant drink nutraceuticals, protein powders, spices, sugar mixture, vitamins, animal feed, ceramics,
pigments, catalysts, Plastic resins, carbon black, polyethylene, polymer additives, PVC compounding, cleaning compounds,
talcum powders, laundry detergents
Working Principle
The horizontal ribbon blender consists of a U-shape trough with a semicircular bottom and is fitted with a horizontal longitudinal shaft.
The shaft has mounted arms supporting a double spiral type ribbon. inner ribbons move materials toward the ends of the ribbon
blender whereas the outside ribbons move material back toward the center of the ribbon blender. The ribbons move materials both
radially and laterally to insure thorough blends in short cycle times. the materials form the axial reciprocating motion in the mixing
chamber. Material outlets are in the middle of the cylinder bottom. The outside ribbon driven by the main shaft moves materials
to discharge.
Product Parameters

Model	Total Volume(L)	Max Loading (kg)	Power (kw)	Speed (r/min)	Overall Size (mm)
WLH-0.3	300	180	4	63	1800×860×1000
WLH-0.5	500	300	5.5	63	2000×1100×1200
WLH-1	1000	600	7.5	41	2400×1400×1380
WLH-1.5	1500	900	11	41	2610×1560×1570
WLH-2	2000	1200	15	32	3000×1600×1630
WLH-3	3000	1800	18.5	32	3300×1700×1800
WLH-4	4000	2400	22	29	3170×1850×1900
WLH-5	5000	3000	30	29	3900×2000×2200
WLH-6	6000	3600	37	26	4200×2100×2100
WLH-8	8000	4800	45	26	4600×2200×2300
WLH-10	10000	6000	55	23	4900×2400×2400

Product Details
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for ribbon paddle mixer
In order to quote you the right ribbon paddle mixer price, Please specify as much information as possible
- What are the materials to be handled?
- What's the mixing capacity per batch?
- What is the particle size of the raw materials?
- What is the bulk density of raw materials?
- Does the product need to be heated or cooled while mixing?
- Does the mixer need to have a vacuum applied when the product is mixing?

---
