Tb6612fng Stepper Motor Driver

Product Description

Return policy details Buyers can return item(s) for a refund within 7 days from the day the item(s) were received, and the buyer is to afford the return shipping cost. The item(s) must be returned in the same exact condition as once it was delivered. Buyers may return the item(s) for a refund if they are not as described or with quality issues within 7 days from the day the item(s) were received.The buyer is required to afford the return shipping cost, based on the condition of the item(s) received. Description

SKU	15F004
Place of Origin	China
Color	Red
MOQ	5
Delivery time	7days
Support customization	yes

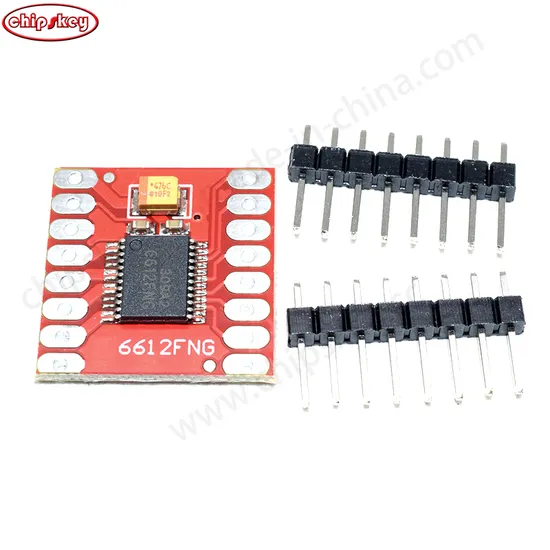

Description:The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak).Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop.The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz..The STBY pin should be pulled high to take the motor out of standby mode.Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC.The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).Decoupling capacitors are included on both supply lines.All pins of the TB6612FNG are broken out to two 0.1 inch pitch headers.The pins are arranged such that input pins are on one side and output pins are on the other.Feature:Standby control to save powerCW/CCW/short brake/stop motor control modesBuilt-in thermal shutdown circuit and low voltage detecting circuitAll pins of the TB6612FNG broken out to 0.1 inch spaced pinsFiltering capacitors on both supply linesSpecification:
Dimension: 0.8 x 0.8 inch
Power supply voltage: VM=15V max, VCC=2.7-5.5V
Output current: Iout=1.2A (average) / 3.2A (peak)
FAQ 1.Are you manufacturer ?
Yes, We Are Manufacturer & Trading Company
2.How long is your delivery time?
Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
3.Do you accept OEM design?
Yes, we do. We can design according to your requirement, MOQ usually 500-1000.
4.What payment terms you accept?
We accept ****** Trade Assuarce, T/T, PayPal, Western Union, Wechat, Alipay, in Cash (RMB or USD).
5.What Express Company You Use ?
We Can Ship the goods Via DHL, Fedex ,TNT, UPS ,Aramex ,EMS , China Post , By Sea And By Air. Company Profile Exhibition
