High Quality Small Bench Lathe Machine CZ1440g-1

US$3,800.00
1-4 Sets
US$3,500.00
5+ Sets

Basic Info.

Model NO.
CZ1440G-1
Type
Horizontal Lathe
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Horizontal Small Bench Metal Turning Lathe CZ1440g
Max.Swing Over Bed
355mm
Distance Between Centers
1000mm
Tool Post Type
4-Way Toolpost
Spindle Motor
1.5kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
1 Month
Spindle Bore
51mm
Width of Bed
186mm
Spindle Nose
Mt5
Spindl Speed
70-2000rpm
Key Word
Small Bench Lathe
Control
Manual Lathe Machine
Transport Package
Wooden Case
Specification
700mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
192.00cm * 75.00cm * 76.00cm
Package Gross Weight
565.000kg

Product Description

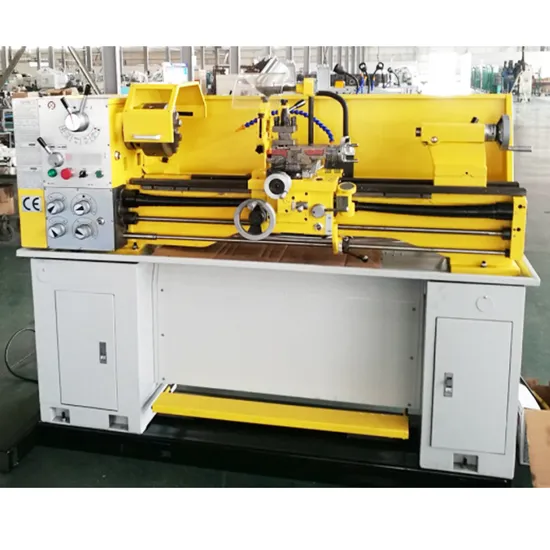

High Quality Small Bench Lathe Machine CZ1440G-1
Standard accessories:
base
3-jaw chuck
4-jaw chuck
Working lamp
Cooling system
Foot Brake system
Optional accessories:
Live center
Face plate
Lead screw cover
Taper turning attachment
American quick change toolpost
2-axis DRO

Model Unit CZ1440G-1
Swing over bed mm φ355
Swing over carriage mm φ220
Swing over gap mm φ500
Width of bed-way mm 186
Distance between centers mm 1000
Taper of spindle M.T.5
Spindle diameter mm Φ51
Step of speed 8
Range of speed rpm 70~2000
Head D1-4
Metric thread 26kinds (0.4~7mm)
Inch thread 34kinds(4~56T.P.I)
Moulder thread 16 kinds(0.35~5M.P)
Diametral thread 36 kinds(6~104D.P)
Longitudinal feeds mm/r 0.052~1.392
(0.002"~0.0548")
Cross feeds mm/r 0.014~0.38
(0.00055"~0.015")
Diameter of lead screw mm φ22(7/8")

Features:
1. Bench metal manual lathe is a small lathe that can complete the processing of lathes, drills, borings, metric and inch threads, and is suitable for the processing of metal and non-metal
parts.
2. It is an instrument, light industrial machinery, motorcycle, auto parts and other industries and schools Ideal equipment for single-piece processing or mass production in teaching,
automobile maintenance, home maintenance, scientific research units, etc.
