High Quantity Digital Pressure Gauge for Industrial Use

US$1.00-10.00 1,000 Pieces (MOQ)

Basic Info.

Model NO.
HQHC
Measuring Range
Low-pressure Gauge
Type
General Pressure Gauge
Accuracy
2.5%, 1.6%, 1.0%
Display
Pointer
Application
Industrial, Civil
Structure
Bellows Pressure Gauge
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Standard
DIN, GB, ASTM, JIS, AISI, BS
Surface
Nickel Platted
OEM
Available
Applications
Fire Sprinkler Protection
MOQ
According to Customer′s Requirement
Material
Carbon Steel
Transport Package
Export Carton, Pallet
Trademark
No
Origin
China
HS Code
9026209090
Production Capacity
200000 Pieces/Month

Product Description

Product Description Used or chemical, petrochemical and food industries, biochemistry and other industrial fields. For measuring the pressure of liquids, steam and gases or any medium that is not corrosive to brass or phosphor bronze, etc.

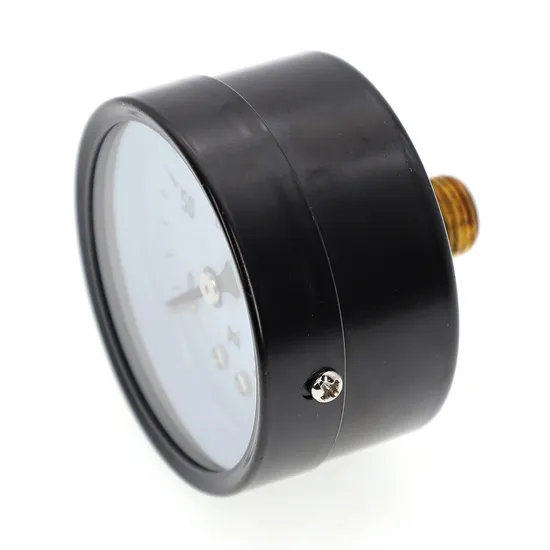

Detailed Photos
Product Parameters
Accuracy 2.5%, 1.6%, 1.0%
Ambient temperature -40°C to +65°C
Process temperature Max 100°C (Dry)
Operating pressure 75% of the scale value
Over pressure limit 25% of full scale value
Case black painted steel
Ring black painted steel
Bourdon Tube Phosphor Bronze
Socket Brass
Movement Phosphor Bronze
Dial Aluminum, black & red graduation on white background
Pointer Aluminum, black
Window sheet glass, PC
Standard Scale MPa, Kg/cm2, psi/kPa, bar...customized
Connection 1/8", 1/4", 1/2" NPT, BSP, or customized
