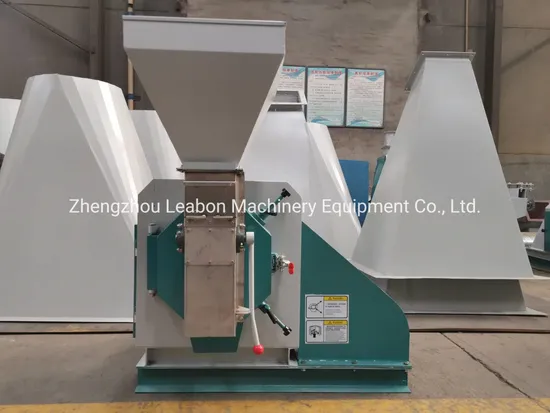

Ring Die Corn Animal Feed Pellet Making Machine for Cattle Feed 2-3t/H Feed Pellet Machine

Product Description

Ring Die Corn Animal Feed Pellet Making Machine for Cattle Feed 2-3T/H Feed Pellet Machine
Introduction of feed pellet machine 1. The transmission gear direct connects with high precision, high transmission rate, stable work, ensure that
the energy transfer.Output 15-20% higher than belt transmission.
2. All stainless steel door, organic outside material and observation window, easy to operate.
3. The machine drive system is the key position of imported bearing, oil seal, long working life, low noise.
4. All stainless steel feeder, varying pitch and arch structure, frequency control of motor speed control.
5. Add large stainless steel conditioning machine, using the axial inlet steam, greatly improve the effect of
tempering and curing time.
6. The whole machine is equipped with iron and overload protection device, give full consideration to
the protection of the host in use process.
7. Using new snake-like spring coupling, compensation, working more smoothly.
8. Can match single, double, multilayer jacketed conditioning device diameter or biaxial poor conditioning,
meet the demand of production of high-grade livestock and poultry and aquatic products material.
Technical paramter of feed pelleting machines:

Model No.	CM-20B	CM-25B		CM-30B
Output(kg/h)	500-700	1000-1500		1500-2000
Power (kw)	11	22		30
Feeding motor(kw)	0.75	0.75		0.75
Revolving Speed of ring die (r/min)	306	306		330
Inside diameter of ring die(mm)	200	250		304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.5*1.52		1.1*1.15*1.25		1.35*1.3*1.6
Weight(kgs)	580		710		960

Specification of Big Feed Plant Use Feed Pellet Mill Machine :

Model	Main power (kw)	Out-put (t/h)	Power of Conditioner (kw)	Power of screw feeder (kw)	In-side of rind die (mm)
SZLH250	22	0.5-1.5	2.2	0.55	250
SZLH320	37	2-3	2.2	0.75	320
SZLH350	55	3-5	3	0.75	350
SZLH400	75/90	3-10	5.5	1.5	400
SZLH420	90/110	3-14	5.5	1.5	420
SZLH508	110/132/160	6-15	7.5	2.2	508
SZLH558	180/200	10-20	11	2.2	558
SZLH678	220/250	25-30	18.5	3	678

Raw material and finally products of feed pellet
