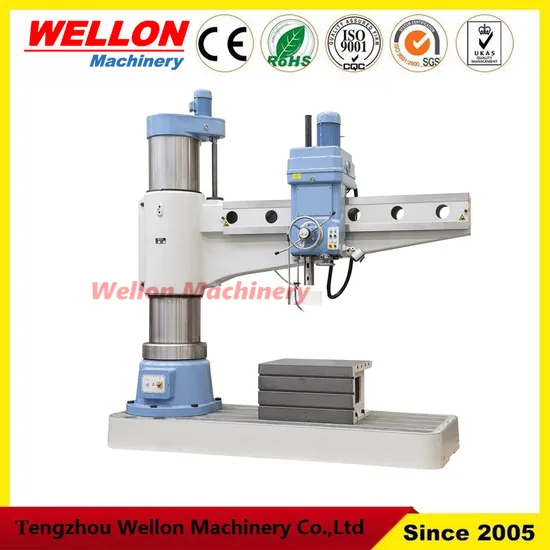

Z3063X20A Hydraulic Radial Drilling Machine 5 Percent Discount

Product Description

Detailed Photos

Product Parameters
Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise

Specification	Units	Z3063×20A
Max. drilling diameter	mm	63
Column diameter	mm	450
Distance from spindle nose to base	mm	400-1600
Distance from spindle axis to column	mm	450-2050
Spindle travel	mm	400
Spindle taper	Morse	MT5
Range of spindle speeds	r/min	20-1600
Number of spindle speeds	step	16
Range of spindle feeds	mm/r	0.04-3.20
Number of spindle feeds	step	16
Work table dimensions	mm	950x630x500
Base dimensions	mm	2900x1250x250
Table size	mm	630x800
Spindle motor power	kw	5.5
Machine weight	kg	6800
Overall dimension	mm	348x147x221

Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench Certifications
