CE Approval Tractor Pto Wood Chipper Th-8, Hydraulic Feeding Rollers

Product Description

Product Description

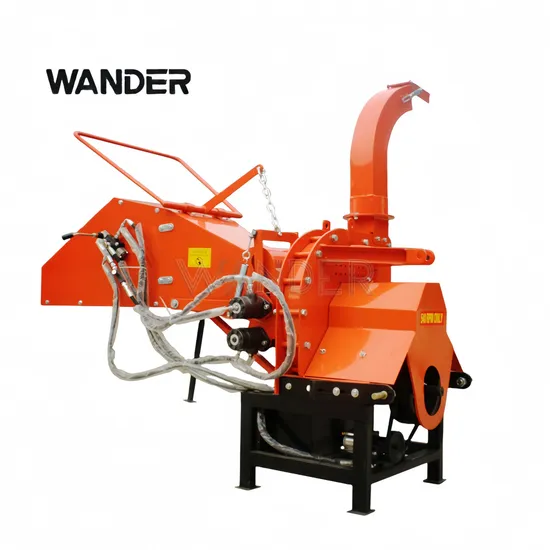

8 INCH TH-8 PTO WOOD CHIPPER-SHREDDER WITH HYDRAULIC INFEED
The TH-8 wood chipper hydraulic auto-feed chipper is a robust self-feeding PTO driven wood chipper attachment that mounts to the 3-point hitch of your tractor.
This PTO woodchipper is compact, dual powered infeed rollers grab and pull material into the chipper
head using two powerful hydraulic motors.
These motors are powered by the chipper's self-contained hydraulic pump and tank (no hydraulics
required from tractor).
True 8″ x 8″ infeed to easily accept those crooked branches.
Pressure Compensate Flow Control Valve allows for very precise infeed roller speed without causing
back pressure on the hydraulic pump.
This allows the user to regulate the speed of the infeed rollers to exactly match their tractors
capabilities while increasing the life of the hydraulic pump.
Hardened Steel Commercial Style Infeed Rollers easily climbs up and grabs the branches to bite in .
360° with an adjustable throwing angle. The shredded material can be thrown up to 20 ft. in distance
making it easy to fill trailers or containers.
Machine can be stop By simply pulling down SAFETY AUTO FEED STOP BAR .
This chipper equipped with 2 dual edge reversible carbon CR12 KNIVES and one bed blade. Reversible chipper blades can be flipped to take advantage of having two cutting edges on one blade.
TH-8 chipper knives can be changed from the side access panel of the machine by one person in as little as 10 minutes.
TH-8 Wood Chipper is equipped with Adjustable Speed Dual Hydraulic Infeed Motors. Adjustable speed aggressive dual counter-rotating hydraulic powered infeed rollers work together to pull material into the chipper head.

Featrues:
- 2 HYDRAULIC MOTORS
- DUAL INFEED ROLLERS
- ADJUSTABLE SPEED CONTROL
- SELF CONTAINED HYDRAULIC SYSTEM
- 8`` x 8`` IN-FEED OPENING
- 5 HEAVY DUTY DRIVE BELTS
- 200 LB. 24`` DIAMETER FLYWHEEL
- QUICK HITCH COMPATIBLE
- EMERGENCY SAFETY BAR WITH REVERSE
- FEED ROLLER ASSIST HANDLE
- 360 DEGREE SWIVEL DISCHARGE CHUTE
- PTO SHAFT WITH SHEAR BOLT PROTECTION
- HIGH ADJUSTABLE TENSION SPRINGS
- ADJUSTABLE BASE LEGS W/ SKID SHOE TYPE BASE

Product Parameters

Technical details of Tractor PTO driven Wood Chipper
Model	TH- 8	TM- 8 / WC-8
Max. Dia. of Feeding / Chipper Capacity	8"diameter/200mm
Mounting System	3 point hitch
Drive Power	Tractor PTO
Flywheel material	Solid steel
Power Required	Tractor (28HP~90HP)
Rotor Flywheel(size) Diameter	24 inches 600mm
Rotor plate weight	143lbs (65kg)	119lbs (54kg)
Rated RPM	540-1000
Turning Speed of Chipper Disk	1080rpm/1410rpm
Number of Rotor Knive	2/4 cutting knives, 1 bed knife(anvil)
Feeding System	Hydraulic Feeding, Adjustable Speed	Feeding by Worm Reduction Gear(4mm/s)
	Stop-Reverse-Forward Function	Only Forward Function
Feeding System power	Self contained hydraulic tank and pump	/
Feeding System Feed	Hydraulic Feed	Reduction Box Feeding
Blade Material / Knife Type	65mn / A8 / Durable Chromium CR-12
Hopper Opening	8``x 9`` ( 200 x 220mm)
Sawdust Measurement	Thickness<14mm
Rotation Angle of Discharge Spout	360 degree
Weight	948lbs (430kg)	882lbs (400kg) / 838lbs (380kg)
Working Efficiency	6~9CBM/H	5~8CBM/H
Volume of TANK	26L	/
Packing Size	One pc 45`` x 36`` x 49`` (1150 × 910 × 1240mm) Two pcs 46`` x 36`` 96`` (1170 x 920 x 2440mm)
Overall Size	75`` x 51`` x 73`` (1900 x 1300 x 1850mm)
20GP/40HQ container	24unit/52units
Optional:	PTO can be Completely cover and infeed chute 1.5m long

Options for Additional Configuration:

1. 30cm/ 50cm extra Chute Rotator
2. Extra longer infeed bin
3. V belts
4. Chute Rotator design on BX model
5. Proportioning Flow Control Valve
6. Skid base shoe


Packaging & Shipping
Packaging Details: Iron crate package or wooden package
One pc 45`` x 36`` x 49`` (1150 × 910 × 1240mm)
Two pcs 46`` x 36`` 96`` (1170 x 920 x 2440mm)
(24 Units in one 20ft container or 52 Units in one 40ft container.)
Delivery Time: 30 working days

---
