portable auto body frame straightener 10 ton

Product Details

Product Description

Product Description

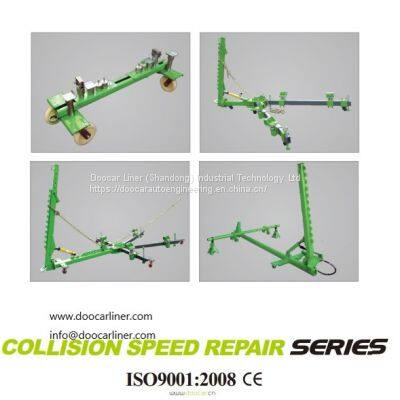

10 Ton auto body frame straightener with swivel post:
1. Pull-down steering mechanism greatly improves work efficiency.
2. 10 tons of high-pressure oil ram, sufficient strength, long tensile moment.
3. 130-degree rotatable pulling arm, effectively reducing work intensity.
4. The surface is electrostatically sprayed, beautiful and generous, durable.
5. Zigzag chain retention system for improved chain adjustability.
6. Extended auxiliary pulling arm, greatly improving the working range.
Key Features:
1. The body straightener is a mobile and quick straightening system to repair bent, distorted auto frames and bodies by utilizing powerful and concentrated loads at key points.
2. The kits Made of high-quality structural steel and have a maximum pulling capacity of 10 tons.
3. Easily repair auto bodies at various damage and straighten independent twist damages.
4. 180 degree swivel pulling post
5. 135 degree swivel pulling beam
Specification:
Model Y-01
Frame length 3000mm
Frame width 270mm
Frame Height 600mm
Pulling arm swivel angle 135°
Pulling post swivel angle 180°
Pulling tower height 1600-2320mm
Hydraulic pressure 70Mpa
Pneumatic pressure 0.8Mpa
Ram capacity 10 Ton
Machine Weight 345kg
More auto body frame puller straightener for sale: info@doocarliner.com

---
