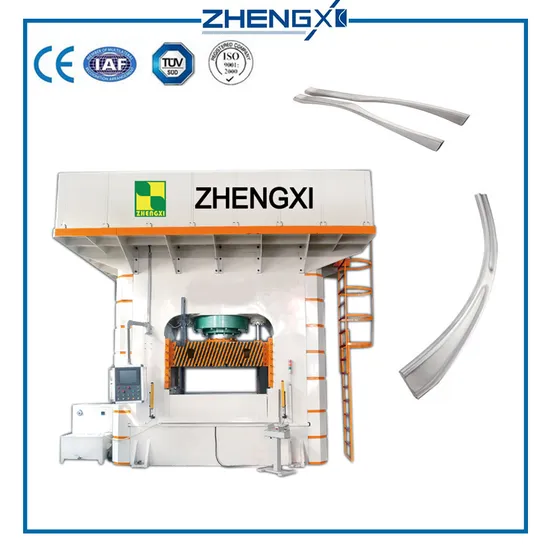

Internal High-Pressure Hydraulic Press Machine for Metal Tube 800 Ton

US$5,000.00-1,000,000.00 1 SET (MOQ)

Basic Info.

Model NO.
THF
Customized
Customized
Automatic Grade
Automatic
Structure
Frame
Voltage
Optional
After-Sales Service Provided
Engineers Available to Service Overseas
Advantage
High Cost Performance and High Production
Power Source
Hydraulic
Controller
PLC
Worktable Size
up to Clients′ Requirement
Color
Optional
Transport Package
Standard International Wooden Case or Iron Pallet
Specification
set
Trademark
ZHENGXI
Origin
China
HS Code
8462919000
Production Capacity
500 Sets/Year

Product Description


Item Unit 63Ton 100Ton 200Ton 315Ton 315A 500 Ton 500A 630 Ton 800 Ton 1000 1250 1600 2000
Nominal Pressure KN 630 1000 2000 3150 3150 5000 5000 6300 8000 10000 12500 16000 20000
Ejecting Force kN 190 190 280 400 400 1000 1000 1000 1000 1000 1500 2000 2000
Back Stroke Force kN 190 320 450 600 600 1000 1000 1250 1200 1300 1300 2000 2600
Stroke Length mm 400 600 710 800 800 900 900 900 900 900 900 1000 1200
Ejecting Stroke mm 150 200 200 250 250 350 350 350 350 350 350 350 350
Opening Height mm 600 900 1120 1250 1250 1500 1500 1500 1500 1500 1500 1600 2500
Speed of Slide Idle Stroke mm/S 26 80 120 100 100 100 140 120 120 120 120 120 120
Work mm/S 15 10 10-15 6-12 6-12 5-12 5-12 4-10 6-15 5-12 4-10 6-10 4-8
Back Stroke mm/S 75 50 85 65 65 80 80 60 110 100 100 150 120
Ejecting Speed Upward mm/S 80 80 95 95 95 80 80 80 140 140 140 100 100
Back mm/S 160 160 135 135 135 160 160 150 150 150 150 200 200
Bolster Surface L.R. mm 580 690 1000 1260 2000 1400 2200 1600 1500 1500 1500 2000 2000
F.B. mm 490 630 900 1120 1400 1400 1400 1600 1500 1500 1500 1800 2000
Overall Dimension L.R. mm 790 960 1340 1660 2020 4060 5000 5300 5500 5800 6000 7800 8200
F.B. mm 490 630 940 1160 1400 1800 1800 1800 2500 2500 2500 3000 3000
Above Ground mm 2592 3280 3950 4390 4680 5400 5700 6130 7100 7500 7900 5925 8660
Power of Motor KW 7.5 7.5 22 22 22 37 44 45 74 74 74 90 100
