Tony Professional Manufacturer Supply 8-10t/H Capacity Drum Wood Chipper

Product Description

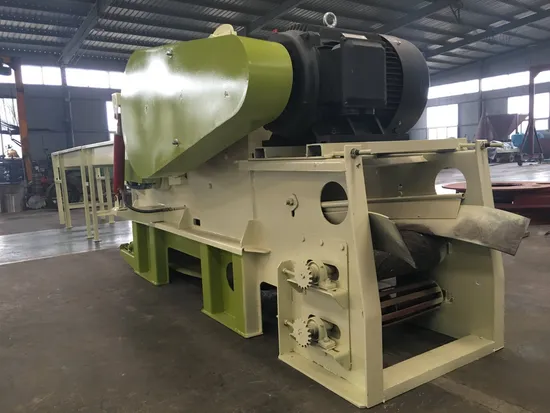

TONY Professional Manufacturer Supply 8-10t/H Capacity Drum Wood Chipper
Product Description
Drum chipper is the production of wood products and special equipment, this product is widely used in particle board plants, medium and high density fiberboard plant, stubble plants, biomass power plant, wood chips and other industrial and manufacturing plant manufacturer preparation in section before the device of choice.
The product structure is advanced, cutting film material of high quality, wide adaptability of raw materials, easy operation and maintenance. The main cutting raw material is small diameter wood, timber harvesting, the trail wood, bamboo, slab materials, processing residues (such as sugar cane, reed, bamboo etc).
Product Details
Application Of Drum Wood Chipper:
Its main raw material is small diameter wood, felling wood, process residua(such as branch,wattle, slab, batten, circle wood core, waste veneer,etc. Also can be used to cut non-woodiness raw material(such as sugarcane, reed, moso bamboo,etc).
Product Parameters
Parameters

Model	TPQ-216	TPQ-218	TPQ-2113
Inlet (mm)	240*540	310*700	400*700
Blade	2	2	2
Rotate Speed	650	800	1300
Max Diameter (mm)	230	300	450
Chip size (mm)	25-35	25-35	25-35
Capacity (Ton)	7-8	8-15	15-30
Main Motor Power (kw)	55	110-132	200-250
Feed Roller Motor (kw)	3*1,4*1	4*1,5.5*1	7.5*2
Oil pump Motor (kw)	1.5*1	1.5*1	3*1
Weight (kg)	4070	7000	11840
Size (mm)	1800*1900*1210	2200*2150*1500	3670*2517*2050
Conveyor motor power (kw)	3	3	3

Parts Show: Knife and Roller
Material: Alloy steel and stainless steel
Working Life: Knife--Around 2000-3000 hours; Rollers-around 3000 hours
Manufacturing Technique: Professional heat treatment ---American Abar Ipsen Vacuum Quenching Oven, can make the hardness above HRC62.
Detailed Photos
Main Features of wood chipper
1.New design blade rotor,blades are easy to replaceable.2.Screen mesh size is customized for different requirements on size of end product.3.Reverse feeding device,belt conveyor can be reversed positively.This device can protect machine,when large wood is encountered4.Higher capacity than the traditional type,larger feeding size,could chipping log diameter 200-500mm
Working Principle Of Drum Wood Chipper:
According to the thickness of the different raw material, top feeding roll can move up and down with the help of hydraulic system. The qualified final product will be discharged from the sieve and then out of the base, the bigger pieces will be crushed in the machine again.
Raw Materials to Finished Products:
Installation Instructions
Customer Case
Packaging & Shipping
Other Products
TONY--- Professional Manufacturer of Pellet Machines
Tony owns a professional team in researching, designing, manufacturing, trading, installing, instructing and serving on pelleting equipments.
Main Products: Biomass wood pellet line, various pellet mill/machines, gridingand crushing equipment, drying equipment, cooler and other screening, conveying products and so on.
Successful Export Experiences: "TONY" machines with good reputation have been exported to lots of Europe, South America, Southeast Asia countries. After Sales Service
Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China.
You can fly to Jinan airport and then we will pick you up(40 minutes by car) .
All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE authentication. Certifications

---
