High End Vibraiton Polishing/Finishing/Grinding Machine

Product Description

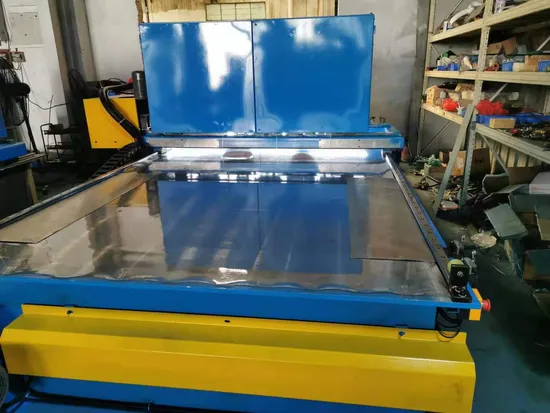

Vibration Finishing/Polishing/Grinding Machine

Working in a similar way as Mirror Polishing Machine, Vibration Finishing/Polishing/Grinding Machine is for the Vibration Finishing on Stainless Steel Surface.

Unlike Mirror Polishing, Which is called Non-Directional Finishing, Vibration Finishing could be referred as a Multi-Directional Finishing.

Mirror Polishing Machines is a type of Centric Polishing, The Polishing Felts are always turning in a circle, and thus the polishing is always mirror and Non-Directional. While Vibration finishing is a type of eccentric polishing, the Polishing pad are turning an ellipse instead of circles, thus, the finishing is always directional.

When Turing in an ellipse, Polishing Pad is like to be vibrating from the horizontal angle, thus, the name Vibration Finishing.

By Vibration Finishing, The Minor Scratches, Dirt, Oxide Skin Etc from the Original Sheets can be covered.

Vibration finishing machine is featured by:

--- Environment Friendly, No Polishing Media should be used

--- Strong & Graceful Machine Frame

--- Automatic thickness adjustment, with Manual assistance.

--- Imported Main Machine Parts

--- High Working efficiency, Low Operation Cost.

--- Pneumatic Oscillation System, Redundant Vibration lines are completely Avoided

--- Special Transmitting System with adjustable transmitting speed to ensure Better And
stable transmission.

--- Adjustable Polishing Pressure

--- Fast Change of the Polishing Pad

--- Easy Operation
--- Best Cost Performance

--- Large Polishing head with High RPM

--- Good Elevation System

--- Large Machine Space for Maintenance and Repairing.

Vibration Finishing Machine is composed of Inlet &* Outlet Roller Tables, Vibration Finishing Machine, Pneumatic System, Laminator Etc.
Main Parameters:

Work Pieces: Stainless Steel Sheets or Plates of all grades
Useful thickness: 0.5~~3MM
Useful Length: 1,500~~4,000MM
Useful Width: <=1,219MM, or <=1,550MM
Transmitting Speed: 0.3~~1M/Min
Finishing Result: Vibration Line
Type: Sheets to Sheets

Non-Standard Machine can be made upon Request.
Application:
Typical Application of Vibration Finishing is: Elevators, electrical devices, Construction Decorating, Kitchenware, Machinery Etc.

---
