Pulping Agitator Impeller for Waste Paper Recycling Line

Product Description

Pulping Agitator Impeller for Waste Paper Recycling Line
Product Description
Used for agitating and mixing the pulp.
The angle of the impeller is adjustable, no need to discharge the pulp from the chest if the agitator packing.

Product Parameters

Type	HT-600	HT-800	HT-1000	HT-1300	HT-1500	HT-2000
Diameter of impeller: mm	Φ600	Φ800	Φ1000	Φ1300	Φ1500	Φ2000
Chest volume: m3	20-50	40-80	70-100	100-130	130-200	300-500
Power: kw	7.5-11	11-18.5	22-30	30-55	70-100	110-132

Scope of Supply

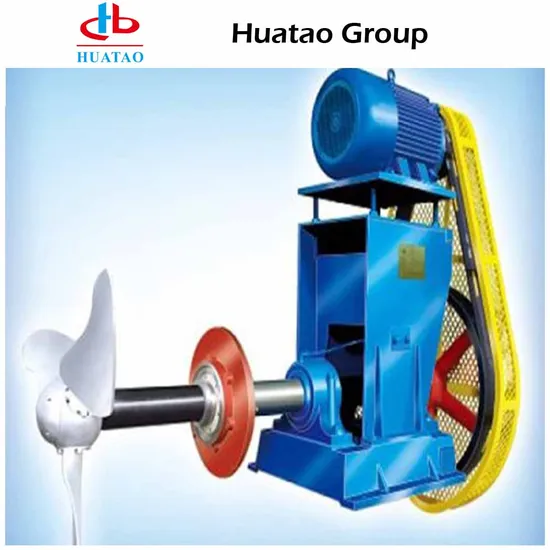

The Pulp Chest Agitator is composed of pulley, bracket, main shaft, base, sealing ring, packing chamber, shaft sleeve, gland, impeller, shaft cap, belt cover, bearing seat, bearing, V-belt, motor, etc.

Detailed Photos
Company Profile
Huatao Group have been a big and professional supplier of Pulp and Paper Machinery and Equipment in worldwide since 2008.
Always keep high quality and service is our key to succeed, because our company believes that only good quality and best service we can get more and more repeat orders from customers.
We have exported paper products such as Agitator, slurry pump, Consistency Transmitter, pressure screen, cleaner, refiner and so on to hundreds of paper mills around the word. Our Professional Team

---
