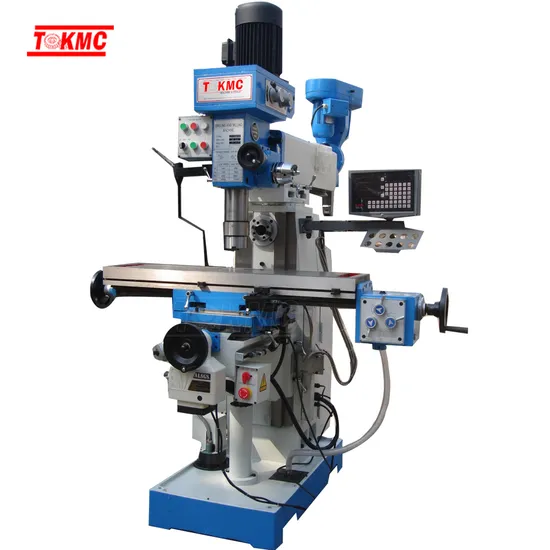

Slotting Head Mini Fresadora Mini Milling Machine

US$2,950.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

zt7550C

Structure

Ram

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Integral

Controlling Mode

Artificial

Automatic Grade

Manual

Precision

High Precision

Certification

GS, CE, ISO 9001

Condition

New

Product Name

Milling Machine Zx7550cw

Table Size

800X240mm

Milling Machine Table Travel

400/230/350 mm

Head Movement

+/- 45 Degree

Main Motor

0.85/1.5 Kw

Spindle Speed

115-1750 Rpm

Spindle Travel

120 mm

Spindle Taper

ISO40 Mt4 R8 ISO30

Drilling Diameter

50mm

Coolant Power

40W 12L

Transport Package

1140X1220X2220mm

Specification

800kgs

Trademark

tokmc

Origin

Shandong

HS Code

84592900

Production Capacity

100 Sets/Year

Product Description

mini fresadora mini milling machine with slotting head
Feature:
- hardened and ground table surface
- rotary table is optional
-head swivel +/-45 degree

Item	ZT7550
Spindle taper	ISO30 R8 MT4
Distance from spindle to table	70-420mm
Spindle speeds	(8step)115-1750r.p.m(V) (8step)60-1350r.p.m(H)
Spindle travel	120mm
Max.drilling capacity of auto-feeding	50mm
Head movement	±45°
Table size	800×240mm
Table travel(horizontal/Cross/Vertical)	400/230/350mm
T-slot number/Width/Distance	3/14mm/60mm
Horse power for main motor	0.85/1.5kw(V) 1.5kw(H)
X axis driving motor	370W
Coolant pump power	40W(12L)
Overall dimension	1290×1220×2100mm
Packing size	1140×1220×2220mm
N.W./G.W.	850/1000kg
