Advanced Zmde CNC Steel Plate Drilling Machine for H Beams

Product Description

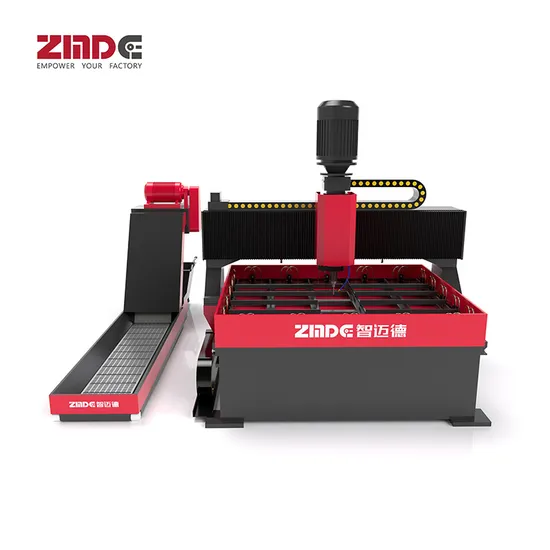

ZMDE Automated CNC Steel Plate Drilling Equipment H Beam Drilling Machine

>An Exceptionally Cost-effective Investment <
1. Crafted from robust materials, this equipment boasts an impressively low failure rate, drastically cutting down on maintenance costs. Key components such as ball screws, linear guide vices, hydraulic parts, electrical components, servo motors, and frequency converters are all sourced from renowned industry brands.
2. The automatic chip removal via CRT display minimizes manual cleaning time, translating to significant cost savings.
3. With superior precision and a high workpiece qualification rate, this equipment dramatically reduces consumable costs.
>Effortless Operation and Outstanding Productivity <
1. Featuring a user-friendly human-machine interface, this machine automatically generates machining programs, making operations smooth and intuitive.
2. Controlled by sophisticated CNC and PLC systems, it ensures pinpoint accuracy in every task.
3. Hydraulic clamps secure workpieces firmly, while the operator can manage the process conveniently using a foot switch, enhancing labor efficiency.
4. Equipped with 12 high-speed hydraulic clamps around the table, allowing simultaneous clamping of four groups of workpieces.
5. Small workpieces can be efficiently clamped at the table's four corners, significantly cutting down production prep time and boosting productivity.
6. This feature also allows the rapid clamping of small workpieces at the table corners, further streamlining the production process and enhancing efficiency.
> Unmatched Quality and Versatile Applications <
1. Built from solid materials, essential components like the gantry, column, and table ensure the machine's durability, with the main unit weighing up to 6300kg.
2. Its wide array of applications makes it indispensable for connecting plate processing across various industries.
3. Capable of handling a broad range of drilling diameters, from 12mm to 50mm.
> Perfect for Diverse Production Environments <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Versatile enough for small batch production of various workpiece types, including rectangular, round flanges, and polygonal shapes. Additionally, it can handle two or four different plate specifications simultaneously.
3. Efficient in processing stacks of multiple thinner sheets, capable of drilling up to 100mm holes in stacked layers.
4. Automatically manages processing start and end points using upper computer software, capable of drilling through holes, blind holes, step holes, and chamfering hole ends.
> Revolutionizing Production Automation <
1. Features line board integration with a high degree of automation, ensuring precise positioning according to the drilling program.
2. Automatically adjusts the optimal feed volume based on different hole diameters for enhanced efficiency.
3. Enables automatic, continuous large hole diameter processing and one-time molding.
4. Equipped with an automatic chip removal function for uninterrupted operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
