IEC61032 Figure 12 8.6mm Jointed Children Finger Probe 18

Product Details

Product Description

Product Description

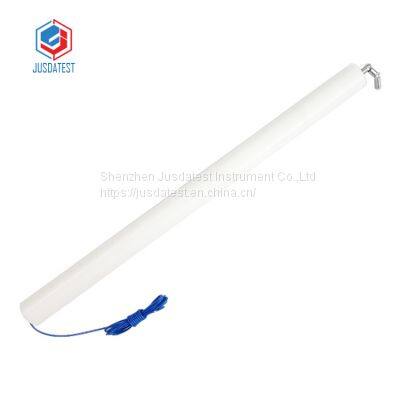

IEC61032 Figure 12 8.6mm Jointed Children Finger Probe 18
Children's test finger to meet the requirements of IEC 61032, IEC60335 and other standards, and is mainly used to simulate the test of children's fingers from 3 to 14 years old approaching dangerous parts.
Probe 18 children's test finger parameters
1. Diameter of curved finger: 8.6mm (Probe 18 children's test finger)
2. Head radius: 4.3mm
3. The total length of the curved fingers: 57.9mm (3 sections each 19.3mm)
4. Diameter of the first handle: 38.4mm
5. Length of the first handle: 101.6mm
6. Diameter of the second handle: 38.1mm
7. Length of the second handle: 451.6mm
8. Reference standard: IEC61032: 1997 Figure 12, IEC60335
