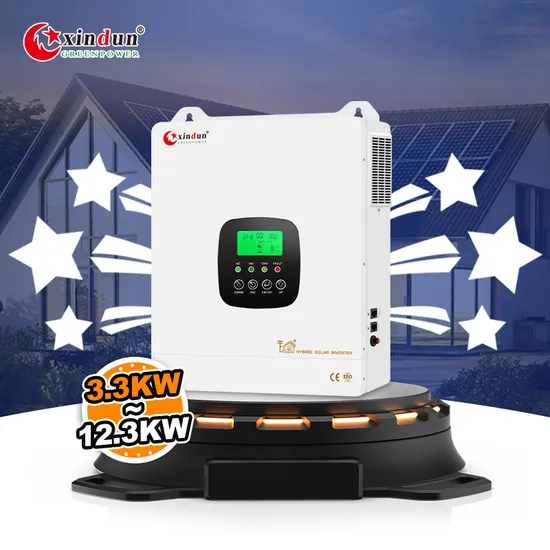

Renewable Energy Best Photovoltaic 12kw 3000W 10kw 3kw 6kw 4000W Single Phase off on Grid Pure Sine Wave MPPT Power Solar Hybrid Energy Inverter Price for Home

Product Description

Inverter Feature 1. Adopting high-frequency design, high power density, small size, and high overall efficiency;
2. Bidirectional energy storage design, which can achieve bidirectional flow control of electrical energy, and both photovoltaic and mains electricity can be charged to the battery;
3. Ultra wide MPPT range, with a minimum of 40Vdc(24V models) / 80Vdc(48V models);
4. Capable of setting working modes (grid connected mode, off grid mode, hybrid mode);
5. Equipped with grid connected current setting function;
6. Equipped with output priority setting function;
7. Equipped with charging priority setting function;
8. Equipped with lithium battery BMS communication function;

9. Support battery-less operation mode.
Product Detail
Specification

Specification
Model : HFP		33224	43224		63248		83248		103248		123248
PV	Max PV Input Power	5000W			7000W		4500W*2		6000W*2		6000W*2
	MPPT Tracking Voltage Range	40VDC-450VDC			80VDC-450VDC
	Rated Voltage	360VDC
	Max PV Input Voltage voc (at the lowest temperature)	500VDC
	Max PV Input Current	18A			27A		18A*2		22A*2		27A*2
	MPPT Tracking Channels (Input Routed )	1 Routed					2 Routed
Battery& Charging	Battery Type	Lead-acid Battery/Lithium Battery
		Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage	24VDC			48VDC
	Battery voltage Range	21~30VDC(default)			42~60VDC(default)
	Max PV Charging Current	120A	150A		120A		150A		180A		200A
	Max AC Charging Current	80A	100A		80A		100A		120A		140A
	Max Charging Current	120A	150A		120A		150A		180A		200A
On-Grid Operation
On-Grid Output (AC)	Rated Output Power	3300W	4300W		6300W		8300W		10.3KW		12.3KW
	Rated Output Voltage	220VAC/230VAC/240VAC
	Grid Voltage Range	187VAC~264VAC
	Rated Output Frequency	50Hz/60Hz
	Frequency Range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated Output Current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A		28.6A/27.4A/26.2A		37.7A/36.1A/34.6A		46.7A/44.9A/42.9A		55.9A/53.5A/51.3A
	Power Factor	>0.98(Rated Power)
Off-Grid Operation
AC Input	Rated Input voltage	220V /230V/240V
	Mains input voltage range	165VAC-280VAC/ 120VAC~280VAC(Can be set)
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
AC Output	Rated Output Power	3300W	4300W		6300W		8300W		10.3KW		12.3KW
	Rated Output Voltage	220V /230V/240V
	Output Voltage Accuracy	±2%
	Rated Input Frequency	50Hz/60Hz
	Output Frequency Accuracy	±1%
	Output Wave	Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC Input	Rated Input voltage	220V /230V/240V
	Mains input voltage range	187VAC~264VAC
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	47Hz~52Hz(50Hz),57Hz-62Hz(60Hz)
AC Output	Rated Output Power	3300W	4300W		6300W		8300W		10.3KW		12.3KW
	Rated Voltage Rated	220VAC/230VAC/240VAC
	Output Current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A		28.6A/27.4A/26.2A		37.7A/36.1A/34.6A		46.7A/44.9A/42.9A		55.9A/53.5A/51.3A
Regular Parameters
Maximum Conversion Efficiency (Battery Discharge)		94%(peak value)
MPPT Tracking Efficiency		≥99.9
Transfer Time		10ms(Typical value)
Display		LCD+LED
Cooling Method		Cooling fan in intelligent control
Communication		RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)
Protection Degree		IP20
Installation		Wall-Mounted
Protection Degree	Battery low voltage alarm	22VDC(default value)			44VDC(default value)
	Battery low voltage protection	21VDC(default value)			42VDC(default value)
	Anti-islanding protection	≤2S
	overload power protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Temperature protection	>90 ºC(Turn off inverter and charging)
Dimension and Weight
Product Size(L*W*Hmm)		325*275*102	365*297*102		390*320*112		515*365*117		535*462*117		630*540*130
Package Size(L*W*Hmm)		400*330*167	440*352*167		465*375*187		600*430*192		615*527*192		715*605*205
N.W.(kg)		6	7		8.5		13		15.5		23.5
G.W.(kg)		6.5	7.5		9.5		15		17.5		25.5

Wiring diagram

Application Case
Packing&Delivery
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
. Fedex/ DHL/ TNT/ UPS for samples, door-to-door. 2. By air or by sea for batch goods, for CFL, Air port/ Port receiving. 3. Customers specifying freight forwarders or negotiable shipping methords. 4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
