Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine

Product Description

Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine 1. PRODUCT INTRODUCTION
1-1. Basic introduction of Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine.
Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) vulcanizing and compression molding.
rubber vulcanizing press can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc..
1-2. Features of Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine.
FOR MORE INFORMATION : oulimachine.en.made-in-china.com
1-3. Parameter of Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine.

Parameter/model	XLB-DQ 350×350×2	XLB-DQ 400×400×2	XLB-DQ 600×600×2	XLB-DQ 750×850×2(4)
Total Pressure(MN)	0.25	0.50	1.00	1.60
Plate Size(mm)	350×350	400×400	600×600	750×850
Daylight(mm)	125	125	125	125
Daylight Qty	2	2	2	2(4)
Piston Stroke(mm)	250	250	250	250(500)
Unit Area Pressure(Mpa)	2	3.1	2.8	2.5
Main Motor Power(KW)	2.2	3	5	7.5
Overall Dimension(mm)	1260×560×1650	2400×550×1500	1401×680×1750	1900×950×2028
Weight(KG)	1000	1300	3500	6500(7500)

Parameter/model	XLB- 1300×2000X1	XLB- 1200×2500×1	XLB 1500×2000×1	XLB 2000×3000×1
Total Pressure(MN)	5.6	7.5	10	18
Plate Size(mm)	1300×2000	1200×2500	1500×2500	2000×3000
Daylight(mm)	400	400	400	400
Daylight Qty	1	1	1	1
Piston Stroke(mm)	400	400	400	400
Unit Area Pressure(Mpa)	2.15	2.5	3.3	3
Main Motor Power(KW)	8	9.5	11	26
Overall Dimension(mm)	2000×1860×2500	2560×1700×2780	2810×1550×3325	2900×3200×2860
Weight(KG)	17000	20000	24000	66000

1-4. Configuration of Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine.
1.The machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance

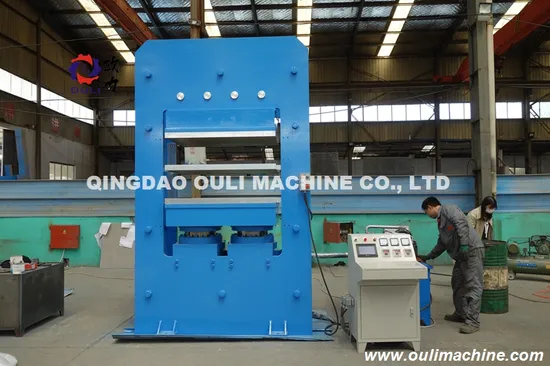

1-5. Sample pictures of Four Column Tire Vulcanizing Machine / Automatic Tyre Making Machine.
2 . COMPANY INFORMATION
2-1 OULI COMPANY
Established in 1997 , Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.
Branches in Suzhou , Dalian etc were created in 2012 and 2015 .
We are specialized in rubber machinery designing,manufacturing and maintenance works
OULI main products:
Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production line
Our machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil .
We warmly welcome customers visit factory and technology discussion is highly appreciated .
2-2 OULI workshop
3. CUSTOMER FEEDBACK
4. EXHIBITION
5. PACKAGE AND DELIVERY
6. FAQ
Q1:Why choose Us?
1.More than 20 years history of OULI MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.
Q3:What's the warranty statement?
OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.
OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about OULI oversea service ?
OULI will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .
