Aluminium Body Wire Rope Hoists 1.6 Ton 3.2 Ton

US$100.00
10-99 Pieces
US$10.00
100+ Pieces

Basic Info.

Model NO.
HX
Wire Rope
20meter
Wire Rope Diameter
8mm 12mm 16mm
Material
Aluminium/ Steel
Model
Yale
Safety Factor
4:1
Other Name
Tirfor
Hook
Eye Hook
Certificates
CE GS
Transport Package
Wooden Case
Specification
0.8T 1.6TON 3.2T 6.4T
Trademark
HUAXIN
Origin
China
HS Code
789650000
Production Capacity
1000psc/ Week

Product Description

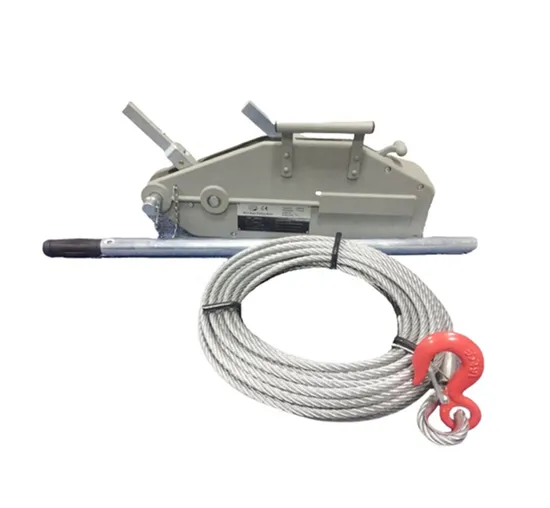

1.6 ton 20m steel wire rope Aluminum tirfor Hoist
Product descriptions: The manual wire rope puller is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.
The principle function of the wire puller is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.
The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.
A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.
This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.
The load is held securely at all times.
Product parameter as belows:
Prouduct pics as belows:
Tirfor machine features:
1.CE,TUV certificate
2.Wire rope: High quality
3.Hook: Deep Forged, High alloy steel
4.Gear: High standard Gear steel
5.Cover: Aluminium alloy
6.Surface treatment: Powder coating
7.Longer life span
For more any questions please feel free to contact us at any time!
