Waxing Device Oiling Deviceused in Warping Machine

Product Description

Product Description

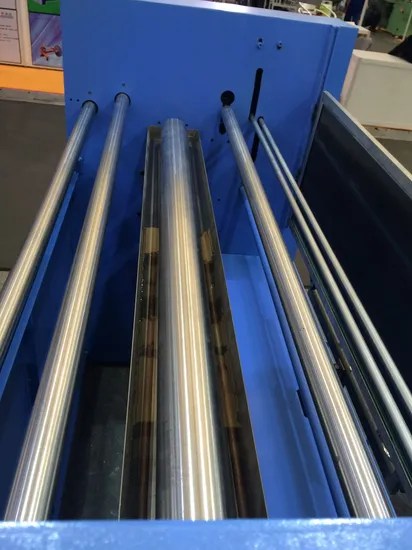

Waxing device working principle is that waxing roller along the direction of the yarn flake on the sizing machine body, is a yarn pressure roll. The yarn flake hold point on the yarn pressing roller is lower than the yarn flake hold point on the waxing roller. The utility model enables stable contact surface between the yarn flake and the waxing roller, ensuring uniform yarn-waxing and improving waxing quality of the yarn flake. Detailed Photos
Machine features
High speed sectional warping machine is designed for flexible production arrangement and high quality weaving requirement. It's preparatory to weaving lines of worsted wool textile, natural silk fabric, filament fabric, special screen cloth, yarn dyed fabric, towel fabric and other special fabrics, can be completed with rapier, gripper, water-jet, air-jet and shuttle-less looms with years' of textile experiences and the latest mechanical and electric technologies.
Main Technical Specification
1. The machine is with high-strength steel structure frame, which make the machine more stable, easier for installation and can prolong the service life.
2. The big round roller is also made from high-strength steel which broke the traditional wood frame roller. The big steel roller is more suitable for large yarn package and can highly increase the warping tension.
3. The product is equipped with advanced electrical control system. The speed control motor is the main power of warping and down-shaft. Also it's equipped with reliable and sensitive brake rigging, which make the warping more convenient.
Machine installation and commissioning
This machine was semi-finished before delivery, please assemble all the parts together before starting work. To ensure the stability of the machine, please install all the foot screws and do the horizontal correction for every direction when install the machine. The acceptance tolerance value of horizontal correction is ±0.1mm/100mm
Product Parameters

Specifications of sectional warping machine
Warping and Beaming machine
1	Work width	1900~3200mm
2	Beam diameter	600mm,800mm
3	Warping Speed	400m/min can be adjusted step-less
4	Beaming speed	100m/min can be adjusted step-less
5	Creel speed	0.467~2.29mm/drum 18 grades adjustable
6	Stub Axle Height	30~200 adjustable
7	power	Warping 3KW Beaming:7.5KW
8	Load/drop beam	automatic air press, load/drop beam device
9	Warping Machine Frame	welded steel bar
10	Drum	Steel
11	LED Display	Eview colorful touch screen
Pneumatic reed
1	Frame	welded steel bar
2	Reed	special stainless steel reed
3	Splitter plate	alumina ceramics
Creel
1	Type	rotary, H Type
2	Pitch	Customized
3	Layer	8
4	automatic stop device	infrared automatic stop
5	spindles	600
6	Tension device	Ring type

Packaging & Shipping
PACKAGING PICS:
Company Profile
WHO ARE WE?
Liaocheng Wetex Import & Export Co., Ltd, with over 20 years of experience, specializes in fully automatic warping and high-speed weaving machinery. We have our own factory, a research and development center, and partnerships with leading domestic manufacturers. Our high-quality products are recognized in over 20 countries across Asia, Europe, the Americas, Oceania, and Africa. Known for competitive pricing and precision, Wetex provides comprehensive solutions, including on-site installation and support in various languages. We are dedicated to innovation and customer satisfaction, making us a trusted name in the textile machinery industry.
Our Advantages
WHY US?

01 Industry experience
With rich experience in the industry, Wetex gives professional guidance and advice according to the needs of customers.
02 Customer Oriented
Wetex always puts customer's satisfaction as the first place, from professional sale suggestion, order tracking, to after sale one-site service, offering customer a life-cycle support.
03 Long-term cooperation
Wetex offer long warranty period, flexible payment methods, online and offline exclusive services, etc. are all to ensure long-term and stable cooperation
04 Own factory endorsement
OUR TEAM:
EXHIBITIONS WE ATTEND:
After Sales Service
SERVICES WE OFFER:
FAQ
1.Q:What are your payment terms?
A:L/C,D/A,D/P,T/T,Western Union,MoneyGram

2.Q:What is your logistics method?
A:Express,sea,lan,air

3.Q:How long is your lead time?
A:30-90 Days

4.Q:How about your after-sales service?
A:We offer engineers available to service overseas under merchandiser's supervision and translation

5.Q:Can i go to the factory for a field trip?
A:Welcome to our old and new friends to visit our factory very much,In addition,if you wish we will send you our instructions and relevant information to facilitate a face-to-face meeting 6.Q:Are you a manufacturer or trading company?
A:We are the leading manufacturer of high speed rapier loom and fully automatic sectional warping machine. And also with many years business relationship with Local textile machinery accessories factories, we also have a trading company to supply one stop solution for our foreigh customers

Wetex is not only a trading company but owned self factory to gurantee the quality, delivery time and price effeciency

---
