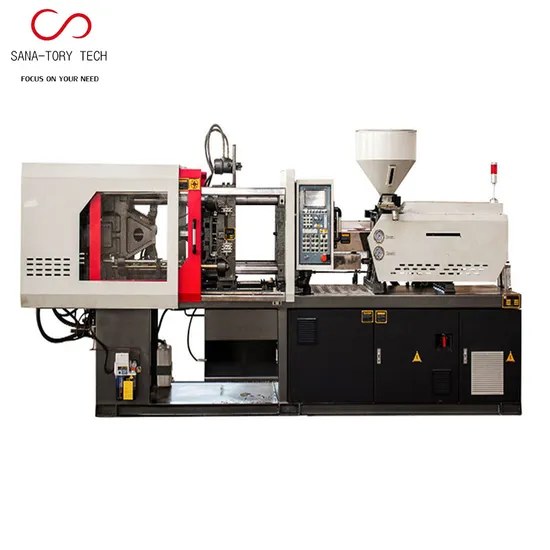

50Ton Mini Injection Molding Machine plastic molding Machine Manufacturer

Product Description

Product Description
Product Parameters

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	26	30	-
	Screw L/D Ratio	L/D	20.9	18.1	-
	Injection Volume	cm3	55	75	-
	Shot Weight	g	50	68	-
	Injection Pressure	Mpa	190	142	-
Clamping Unit	Clamping Force	KN	500
	Opening Stroke	mm	260
	Mould Thickness(Min-Max)	mm	100-285
	Space Between Tie-Bars	mm	285×285
	Ejector Force	KN	20
	Ejector Stroke	mm	65
General	Motor Power	KW	7.5
	Heater	KW	4.6
	Pump Pressure	Mpa	16
	Machine Dimension	m	3.1×1.1×1.6
	Machine Weight	T	1.5
	Mould Orientation Ring Diameter	mm	Φ100
	Nozzle Radius	mm	SR10

1, Save Power Consumption
Cooling phase, the motor does not need to work, power consumption is 0.
Compared with the traditional injection molding machine can save electricity <80%
2, Saving Water And Fuel
Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce
1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.
3, Living longer 2~3 Double.
Machine Service Life Longer And Cleaner Working Environment
4, Improve the production efficiency
Quick Response And High Efficiency
Injection molding machine to achieve maximum output in 0.05 s
50 rpm can be up to 140 bar
High Repeat Precision, Save Raw Materials
Repeated injection precision can reach <=3%
Pressure Is Stable, Improve the Quality Of Molding
Pressure fluctuation quantity is less than + / - 0.5 bar
5, Stable At Low Speed
Closedloop control pressure and flow, at low pressure and low flow operation performance is particularly
outstanding, shoot rubber speed in less than 1 mm/SEC without crawling, pulse, high stability. System according to the actual product process requirements, set arbitrary pressure and flow, avoid excess heat generation, the oil temperature relative to the traditional injection molding machine is stable. In addition, the pressure
flow automatic compensation when motion, maintain the stability of the pressure and flow rate, high control accuracy and repeat precision.
6, Machine Service Life Longer And Cleaner Working Environment
Less Noise Emissions
Low Heat And Cooling Energy Demand Is Low,
More Suitable For Production Environment With Air Conditioning
Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C
