Belt Type High Frequency Edge Gluing Board Press with Radio Frequency

Product Description

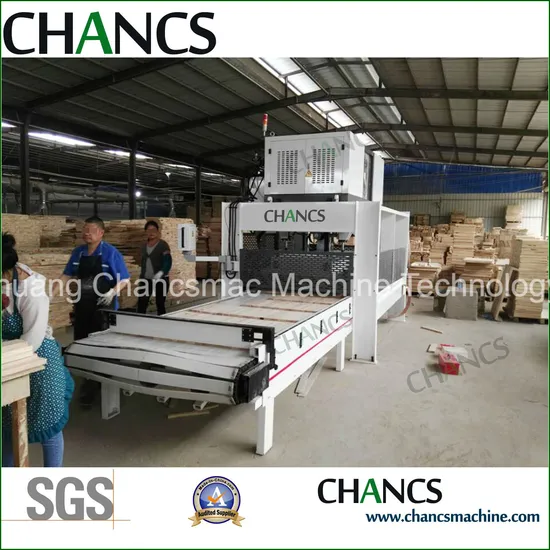

Conveyor Belt Type High Frequency Edge Glued Panel Press

1.Introduction:
This model is the best choice for short furniture panel joining. Width and length can be free jointed.
There are following advantages:
1). Can place wood pieces in right position, avoiding dislocation problem and damage cylinder.
2). Machine working table processed by non-cohesive material. Glue is easy to remove and assure panel quality.
3). Top working table designed with lifting device. Make sure panel straight and flatness.Save more wood material for next sanding process.
4). Locate high frequency generator and hydraulic system on the top of machine, saving factory space.
6). High efficiency: HF heating 1-2minutes finish one standard panel(8x4 feet, 20mm thick ).
7).Low power costs: HF power only heat glue line, save the power. (0.6-1 kwh per panel)
8).Labor saving: Automatic control. One button can finish whole cycle.
9).No pollution: HF power only needs electricity, dust free and clean
2.Parameter:

Model	HFEG-2580C-CH	HFEG-3280C-CH	HFEG-4280C-CH	HFEG-5280C-CH
Control Type	PLC Automatically control, fault checking and alarming
Working table	2500x1300mm	3200x1300mm	4200x1300mm	5200x1300mm
Thickness	10-80mm	10-80mm	10-80mm	10-80mm
Vertical Pressure	12T	12T	24T	24T
Horizontal Pressure	36T	48T	60T	72T
Feeding Type	One Button Automaticlly Conveyor Belt Feeding

3.Detailed Images:
Hydraulic system
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.

---
