Tony Hourly Output 2.5-3ton Ring Die Pinus Sylvestris Pellet Machine

US$42,000.00-48,000.00 1 Ton (MOQ)

Basic Info.

Model NO.
TYJ760-III
Automatic Grade
Semiautomatic
Controlling Mode
CNC
Energy Saving
Energy Saving
Certification
CE, ISO, SGS
Warranty
1 Year
Customized
Customized
Condition
New
Color
Multi Color
After-sales Service
24 Hours
Application
Biomass Fuel Pellets Producing, Power Generation P
Diameter of Pellet
6-10mm
Raw Materials
Wood Chips, Sawdust, Timber, Trunks
Capacity
2.5-3ton/Hr
Usage
Making Biomass Pellets
Power
160kw
Transmission
Big Gear
Ideal Moisture
10-15%
Lubrication
Auotomatic
Structure
Vertical Ring Die
Spaer Part
Ring Die and Roller Group
Material of Die and Roller
High Alloy Steel
High Alloy Steel
Manual/Video Chat/Engineer Guide
Transport Package
Shipping Container
Specification
2500*1600*2400
Trademark
TONY
Origin
China
HS Code
8479300000
Production Capacity
2.5-3t/H

Packaging & Delivery

Package Size
260.00cm * 170.00cm * 250.00cm
Package Gross Weight
8500.000kg

Product Description

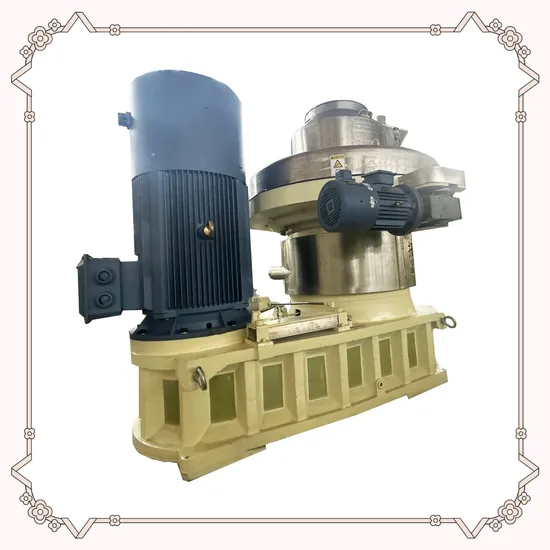

TONY hourly output 2.5-3ton Ring Die Pinus Sylvestris pellet machine
Product parameters
Model Power(KW) Capacity(T) Weight(T) Size(mm)
TYJ551-III 90 1.5 5.5 2100*1300*2000
TYJ551-III 110 1.5-2 5.8 2100*1300*2000
TYJ551-III 132 2-2.5 6 2250*1400*2150
TYJ760-III 160 2.5-3 9 2500*1600*2400
TYJ860-III 220 3-4 13.5 2700*1700*2500

The latest type of wood pellet machine on the market,The industry is the first to adopt a customized special gear box designed specifically for Tony granulator. The spindle load design condition is several times larger and the process is more accurate. The reducer lubrication system is more intelligent
Mold double layer, upper and lower use, reduce cost and increase efficiency. Independent lubrication, high pressure filtration, clean and smooth.
The bearing adopts the heavy duty, the service life is longer, the whole machine maintenance rate is lowerThe industry is the first to adopt a customized special gear box designed specifically for Tony granulator. The spindle load design condition is several times larger and the process is more accurate. The reducer lubrication system is more intelligent
Mold double layer, upper and lower use, reduce cost and increase efficiency. Independent lubrication, high pressure filtration, clean and smooth.
The bearing adopts the heavy duty, the service life is longer, the whole machine maintenance rate is lower
raw material
On-site test machine
Exhibition
Tony ships
our service
