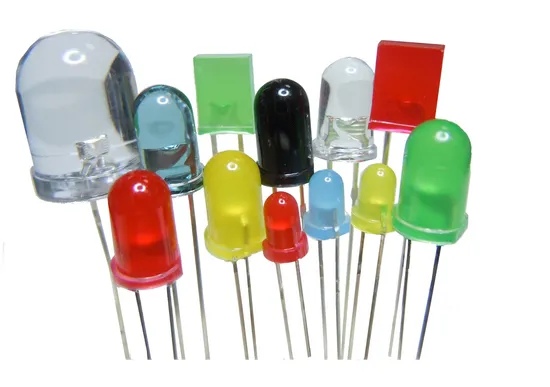

Red Blue Green Yellow Radial Dipped Round LED

Product Description

5mm round LED (green diffused)- ELECSOUND
High efficiency
Low Power consumption
General purpose leads
Selected minimum intensities
Available on tape and reel
Pb free
Descriptions
The series is specially designed for applications
Requiring higher brightness
The LED lamps are available with different
Colors, intensities, epoxy colors, etc
Superior performance in outdoor environment
Usage Notes:
Surge will damage the LED
When using LED, it must use a protective resistor in series with DC current about 20mA
Applications
Status indicators
Commercial use
Advertising Signs
Back lighting
Device Selection Guide
LED Part No. Chip Lens Color
Material Emitted Color
5003G6D-EPB-P AlGaInP Green Color Diffused
Absolute Maximum Rating (Ta=25C)
Parameter Symbol Absolute Maximum Rating Unit
Forward Pulse Current IFPM 100 mA
Forward Current IFM 30 mA
Reverse Voltage VR 5 V
Power Dissipation PD 140 mW
Operating Temperature Topr -40~+80C
Storage Temperature Tstg -40~+100C
Soldering Heat (5s) Tsol 260C
Electro-Optical Characteristics (Ta=25C)
Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 25 --- 50 mcd IF=20mA(Note1)
Viewing Angle 2θ1/2 50 --- 60 Deg (Note 2)
Peak Emission Wavelength λp 565 570 575 nm IF=20mA
Spectral Line Half-Width Dλ 15 20 25 nm IF=20mA
Forward Voltage VF 1.9 --- 2.5 V IF=20mA
Reverse Current IR --- --- 10 µ A VR=5V
Note:
1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. 1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

5003R4C-BPC-P	GaP	Red	640	Water Clear	1.8-2.4	50-100	15
5003R2C-BHC-S	GaAsP	Red	630-640	Water Clear	1.9-2.3	250-400	15
5003R1C-BSA-A	AlGaInP	Red	620-635	Water Clear	1.9-2.3	1000-2000	15
5003R1C-BSB-B	AlGaInP	Red	620-635	Water Clear	1.9-2.3	2000-3500	15
5034R1C-BSC-C	AlGaInP	Red	620-635	Water Clear	1.9-2.5	4000-6000	15
5034R1C-BUA-D	AlGaInP	Red	620-635	Water Clear	1.9-2.5	10000-15000	15
5003Y1C-BSA-A	AlGaInP	Yellow	580-595	Water Clear	1.9-2.3	1000-2000	15
5003Y1C-BSB-B	AlGaInP	Yellow	580-595	Water Clear	1.9-2.3	2000-3500	15
5034Y1C-BSC-C	AlGaInP	Yellow	580-595	Water Clear	1.9-2.5	4000-5500	15
5034Y1C-BUA-D	AlGaInP	Yellow	580-595	Water Clear	1.9-2.5	10000-15000	15
5003G6C-BHA-P	GaP	Green	565-575	Water Clear	1.8-2.4	50-100	15
5003G6C-BSA-S	AlGaInP	Green	565-575	Water Clear	1.9-2.3	1000-2000	15
5034G3C-BSC-A	InGaN	Green	520-530	Water Clear	2.9-3.5	4000-6000	15
5034G3C-BUA-B	InGaN	Green	520-530	Water Clear	2.9-3.5	10000-15000	15
5034B2C-BSB-A	InGaN	Blue	460-470	Water Clear	2.9-3.5	1500-2500	15
5034B2C-BSC-B	InGaN	Blue	460-470	Water Clear	2.9-3.5	2000-4000	15
5034B2C-BSD-C	InGaN	Blue	460-470	Water Clear	2.9-3.5	6000-9000	15
5034W2C-BSC-A	InGaN	White		Water Clear	2.9-3.5	2000-4000	15
5034W2C-BSD-B	InGaN	White		Water Clear	2.9-3.5	6000-9000	15
5034W2C-BUB-C	InGaN	White		Water Clear	2.9-3.5	12000-18000	15

Product Overviews
We currently offer a broad range of capacitors, LEDs, Cermet Trimming Potentiometers, PCBs, Semiconductors, Transistors, Zinc Oxide Varistors, Switches and Resistors.
Company Information
Elecsound is an ISO Certificated manufacturer of high quality, high reliability electronic components, formed in January of 1996. Our staff has over 10 years of experience with excellent English. All of our employees have a strong work ethic and a strong commitment to provide the high quality products that consistently meet or exceed our customer's requirements.
Certificates
Packaging & Shipping
FAQ
1: How long is your lead time?
It depends. Normally, it is 2-6 working days if the goods are in stock, or it is 7-40 days if the goods not in stock.

2: What is your terms of payment ?
For small amount orders, 100% better paid by PayPal or T/T in advance. For large amount orders like more than
10000USD, 30% T/T in advance , balance fully paid before shipment.

3. Do you have any MOQ limit for an order?
Yes, we have MOQ. different items have different MOQ. We will mark MOQ when we quote.

4: How to proceed an order?
Firstly, let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and pay deposit for the official order. Finally, we arrange the production and ship once it's ready.

5: Do you accept online orders?
Sure!! We prefer to fulfil orders under Trade Assurance system, since both parties will be protected.

6: Do you provide samples? is it free or extra?
Yes, normally we could offer samples with free charge but do not pay the shipping freight.

7: How do you guarantee my goods right?
Order will be arranged exactly as requested, we will doubly check the packing and qty before delivering out also we will take you photos if required or necessary.

8: Is it OK to print my logo on the packing?
Of course, customized packing accepted!! But it may bring some cost, it depends on the qty, if small qty then we don't accept.
