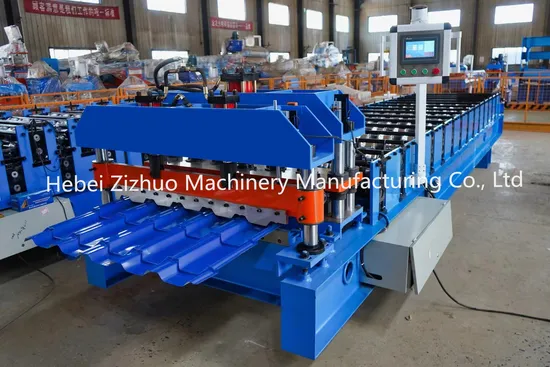

Double Layer Decking Corrugated and Trapezoidal Roofing Sheet Cold Roll Forming IBR Box Profile Tr4 Tr5 Pv4 Pv6 Steel Building Material Machine Factory Price Detailed Photos
| No. | Item | Parameter | Remark |
| 1 | Suitable material | Type | Color steel, galvanized steel | |
| Thickness(mm) | 0.35-0.7mm | Test material standard 0.45mm |
Yield strength
(Mpa) | ≤300mm | |
| Width (mm) | About 1220mm | |
| 2 | Forming speed | About 1-4 m/m | Not include cutting time |
| 3 | Motor of forming system (kw) | 5.5kw | Depends on final design |
| 4 | Hydraulic station power(kw) | 4kw | Depends on final design |
| 5 | Voltage requirements | AC380V, 50Hz, 3phase | According to the customer's request |
| 6 | Roller material | #45 steel with heat treatment 58-62 degrees | |
| 7 | Shaft diameter | 70mm solid | |
| 8 | Control system | PLC with touch screen | Delta brand |
