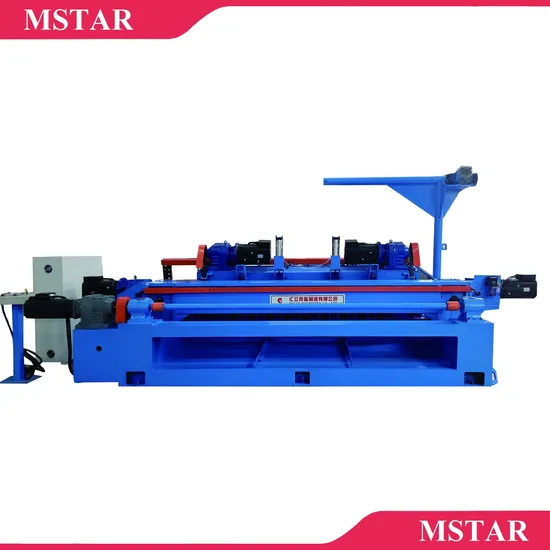

Mstar Hot Seeling Lasted Advanced 8FT Veneer Peeling Machinery

Product Description

Company Profile
MSTAR MACHINERY CO., LTD is located in Linyi city of Shandong, China, and it is a modern professional enterprise and specialized in research, development, production and distribution of woodworking machineries. Our leading products are high speed spindleless veneer peeling line, sanding machine, hot press, saw, debarker and so on. Our high speed automatic veneer peeling line has become the benchmark of the peeling industry, with the advantageds of high efficiency, energy saving , time saving and labor saving.
By offering qualified products, perfect services and honest sales, we earn the applause from the world, We sincerely look forward to cooperate with you! Product Parameters

Parameter	Value	Notes
Length of the Roller(mm)	2750
Power of Double Roller(kw)	15kw X 2	AC Servo induction motor
Power of Single Roller(kw)	15kw X 2	AC Servo induction motor
Power of Screw Feed(kw)	11kw	AC Servo induction motor
Power of Rotary Clipper(kw)	5.5kw	AC Servo induction motor
Power of Rubber roller (kw)	5.5kw	AC Servo induction motor
Total Power(Kw)	82kw
Roller Reducer	Helical Gear Reductor X 4	R97
Screw Feed Reducer	Helical Gear Reductor X 1	R97
Veneer output speed(m/min)	50-80 m/min Adjustable 50-80 m/min
Blade (mm)	2750*180*16
Screw Diameter(mm)	90mm
Max opening(mm)	500
Minimum Log core	35mm
Thickness(mm)	0.8 - 4.0
Clipper width(mm)	>= 400 mm
Control Unit	Peeling Speed Adjust System Closed loop Servo control	PLC + Touch Screen PLC+ MD810
Size(mm)	6500*2200*1600 Length()*Width()*Height()
Weight(kg)	15000

Detailed Photos
SINGLE ROLLER AND DOUBLE ROLLEER GIVEN SPECIAL TREATMENT
MORE WEAR-RESISTING
VENEER MORE SMOOTH

CYLINDERS ON SIDES IN CASE PEELING LOG IS NOT AT THE RIGHT POSITION
CYLINDER WILL PUSH THE LOG AUTOMATICALLY
MACHINE IS CASTED, HEAVY DUTY MACHINE AND MACHINE IS MORE STABLE FOR LONG TIME RUNNING
SHOWING TIME
LUBRICATED SCREW AND NUT AND PEELING SLIDER
TEAM & CULTURE
"One vision, one team, one goal."

"Teamwork makes the dream work."
"Together, we rise."
OUR VISION

"United, we conquer."
"Collaboration unlocks potential."
"Teamwork makes the dream work."
"One vision, one team, one goal."
FAQ
Q1:Can you customize products for clients?
A1: Yes .We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2: If you order, we guarantee the quality is same with what you see. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The configuration of motor and control system determines the change of price. Different quality determines different price.

Q5:What about the contract signing?
A5: If you're satisfied with the products and our service, you can sign the contract with us, pay the deposit Then we'll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

Q6: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
Contacts
I believe that by understanding our products,you will recognize and want to buy it,our products will not disappoint you, so do not hesitate to act quickly,contact us.
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging

---
