10t/H Air Screen Cleaner Gravity Paddy 99.5% Purity Sesame Seed Grain Beans Peanut Soybean Corn Maize Lentils Chia Cleaning Sorting Grading Processing Machine

Product Description

10t/H Air Screen Cleaner Gravity Table 99.5% Purity Sesame Seed Grain Beans Peanut Soybean Corn Maize Sunflower Chia Cleaning Sorting Grading Processing Machine Multifunction
Product Description
Introduction and Function

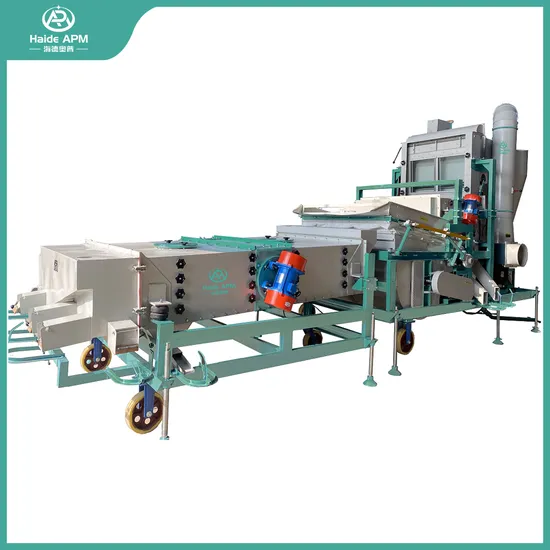

This Sesame/Soybean/Corn/Peanut Compound Air screen cleaner with a gravity table removes dust, leaf, and light impurities from the air screen. Remove above 90% bad seed, like blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, and seed with black powder sick by the gravity table. Remove the big impurity from the back half screen.


Detailed Photos
Product Parameters

Product Name	Compound Air Screen Cleaner With Gravity Table
Keywords	Seed Cleaning Machine
Brand	Haide APM
Model	5XFZ-25S+10C
Key Selling Points	High-Accuracy
Productivity	10T/H
Power	3 Phase Electricity, 380V,50HZ, Customizable
Power	12.5kw
Weight	4000kg
Feature	Compounded, Multifunctional, with Gravity table
Function	Seed and Grain Cleaning, Remove Impurities, Remove bad seed
Delivery Time	2-7Days
Certificate	CE,SONCAP,ECTN etc
OEM/ODM	Accept
MOQ	1set

Model	table Size(mm)	Power (kW)	Capacity (t/h)	Weight (kg)	Overall size LxWxH(mm)
5XFZ-25S+10C	Table Size:1700 x 1600 Sieves Size: 1500 x 2400	12.5	Soybean 10t	4000	6700 x 2300 x 3800
			Sesame 5t

Working principle
This Compound Air screen cleaner with a gravity table integrates the functions of lifting, vertical air selection, grading selection, and specific gravity selection. First, the material is transported to the bulk grain tank by the lifting equipment. Under the action of the bulk grain tank, the material is dispersed into a uniform waterfall surface and enters the vertical air screen.
The light impurities are discharged from the light impurity outlet of the dust collector through the air selection, and then the material flows into the specific gravity table, are separated due to the difference in specific gravity. The impurities with smaller specific gravity are distributed on the surface flow to the lower end and discharged from the light impurity outlet, which can be bagged randomly or enter the next processing flow.

This Seed Cleaning Machine can clean different kind of material. Just need to change sieves and gravity table.
Seed Grain Beans Peanut Soybean Corn Maize Sunflower these large particle materials can be processed on one gravity table.
Sesame Chia these small particle materials require a gravity table with small fish scale holes.


Company Profile
FAQ
Q1: Are you a factory or trading company?
A1: We are a professional manufacturer of seed processing machinery and also an international trading company
Q2: Can we visit the factory?
A2: Sure, our factory is in Hebei Province, very close to Beijing, You can contact our business manager, and we will arrange the pick-up service.
Q3: I want more machines, how can I get the latest catalog for reference?
A3: You can contact us, and we will send you the latest catalog.
Q4: How to ensure the quality.
A4: Before each device is shipped, our engineers will debug the device to the best operating condition to ensure the customer's use effect. We will provide commonly used spare parts, and after-sales engineers will provide technical solutions for machine failures in time.
Q5: why should you buy from us not from other suppliers?
A5: We will supply even design for our customers the suitable and trustful machines according to different requests. We continuously devote ourselves to supplying intelligent, practical machinery and completed technical services to our customers.
You only need to provide:
1. Raw materials
2. Raw material purity
3. The original impurity content of the material
4. Production demand
5. Purity requirements for finished materials
6. Plant layout or size
We will provide you with a perfect solution.
Q6: What are your payment terms for new customers?
A6: A T/T, L/C, Money Gram, West Union, Paypal etc

---
