High-Performance Automatic Blow Molding Machine for Various Bottle Materials

Product Description

Products Description

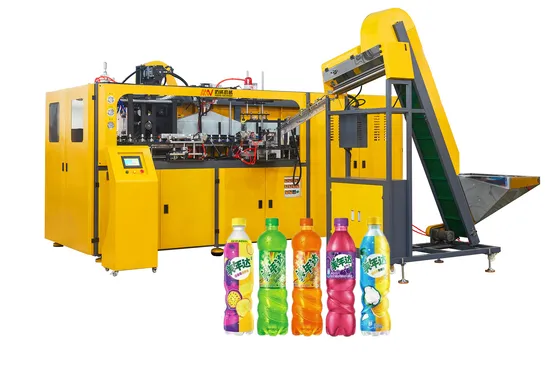

Automatic Bottle Blow Making Machine Introducing our cutting-edge, fully automatic high-speed blow molding machine. Designed to transform bottle-making from 20ml up to 2 liters into a seamless experience, this machine combines intricate design with state-of-the-art machinery. Achieve a gradual and stable blowing process with ease. Its standout features include uniform heating and a sophisticated layered preform heating system. With automatic fault detection and alarm capabilities, the machine ensures efficient control and unwavering production stability.

Features * Our Blowing Machine is crafted to produce a variety of bottle sizes with an enhanced design and a smooth, vibration-free operation.
* Experience the unmatched stability of our hydraulic mold system, which offers both a sophisticated design and flawless clamping for robust operations.
* Enjoy the precision of our sound air control system, maintaining uniform airflow throughout the entire operation for optimal results.
* For unparalleled shaping convenience and accuracy, the cooling device efficiently attaches to the bottleneck, providing focused cooling post-molding.
* The dynamic servo motors facilitate seamless stretching of preforms, enabling rapid and precise stretching strokes.

Product Paramenters

Model		Unit	MW-F6-650	MW-F6-2000
Clamping System	Number of cabity	cavities	6	6
	Clamping unit	KG	40000	48000
	Mold stroke	mm	90	125
	Stretching stroke	mm	260	330
	Bottom stroke	mm	50	50
	Cavity pitch	mm	76.2	114.3
	Number of holder	PCS	95	82
Container	Max.container volume	ml	650	2000
	Max.container height	mm	260	330
	Max.container diameter	mm	68	105
	Max.prefrom height	mm	100	140
	Max.neck diameter	mm	38	38
Theoretical		B/H	7500	6000
Electrical System	Heating oven qty	PCS	4×4	5×5
	Number of lamp	PCS	4×7	5×9
	Heating power	KW	42	72
	Installed power	KW	45	80
	Voltage	Voltage	380V/50HZ	380V/50HZ
Air System	Operating pressure	mpa	0.7-0.9	0.7-0.9
	Blowing pressure	mpa	2.5-3.0	2.5-3.0
	High pressure air consumption	L/min	3.6/30	4.0/30
	Power	KW	45	48
Chiller System	Temperature		9-13	9-13
	Pressure	mpa	0.4	0.4
	Power	HP	5	5
Machine	Machine dimension	M	3.9×1.8×2.2	4.8×2.2×2.2
	Machine weight	KG	3500	4500

Packing and Shipping
Packaging: Our packaging is meticulously designed to ensure maximum protection: stable wooden packaging shields the machine from impacts, while a plastic film wrap guards against moisture and corrosion. This fumigation-free package ensures easy customs clearance. Larger machines are expertly secured in containers without the need for additional packaging.
Shipping: Rely on our trusted logistics team at LCL to deliver your machine to the port swiftly and securely. For FCL, we procure containers and our skilled personnel carefully load them. Our longstanding partnerships with professional forwarders ensure your shipments are handled with ease. We aim for seamless cooperation with your forwarders for your ultimate convenience.
Customization Service

We offer comprehensive customization services tailored to your product needs. Our expertise includes delivering a complete set of mold designs, ensuring perfect alignment between the bottle cap (injection mold) and body (blow mold). Leveraging high-precision machining centers, we craft molds with exceptional precision. Our services guarantee an excellent cooling effect, offer free proofing, embody exquisite production technology, and adhere to strict quality standards.
Company Profile
With years of dedication to advancing blow molding technology, Maiwei has amassed extensive expertise, continually refining equipment for optimal stability, reduced energy use, and enhanced durability. Our diverse product lineup includes bottles for dairy, wine, oil, laundry detergent, engine oil, sprayers, hollow toys, and various other hollow plastic items. Our commitment goes beyond merely selling equipment; we actively provide solutions for your packaging blow molding challenges. Our machine boasts a vast application range and offers adaptable air source systems per user specifications, ensuring flexibility, low energy consumption, and high efficiency.
Factory Showcase

Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service?
A.We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
