High Cost Performancefactory Precise Panel Sawmachine

Product Description

Model	F45-380E	F45-320E	F45-300E
Dimensions of sliding table	3800*422mm	3200*422mm	3000*422mm
Max sawing thickness	90mm	90mm	90mm
Power of main saw spindle	5.5kw	5.5kw	5.5kw
Rotary speed of main saw spindle	4400/5600r/min	4400/5600r/min	4400/5600r/min
Diameter of main saw	350mm	350mm	350mm
Diameter of main saw spindle	30mm	30mm	30mm
Power of grooving saw	0.75kw	0.75kw	0.75kw
Rotary speed of grooving saw	8500r/min	8500r/min	8500r/min
Diameter of grooving saw	120mm	120mm	120mm
Diameter of grooving saw spindle	20mm	20mm	20mm
Tilting saw blade	45°	45°	45°
Dimension	3800*1100*840mmm	3200*1100*840mmm	3000*1100*840mmm
Weight	900kg	800kg	780kg

Function:
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others ith wood structure and similar hardness
Characteristic:

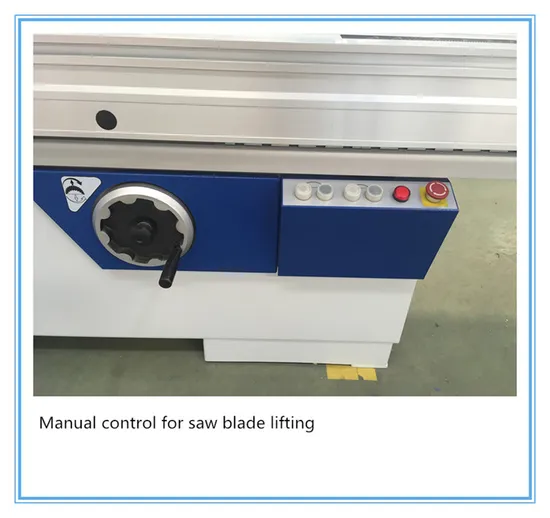

1Manual control for saw blade lifting and tilting 0-45º
2Digital display can be accurate to 0.1 degree
3 Round steel bar Sliding table is with solid double T-slot and multi-point locking system make it more convenient
4Sturdy and quiet operational internal structure: the whole finished assembly spindle is adopted dynamic balance processing. The case reinforce iron parts provide as powerful guarantee for the quiet operation
5Crosscut ruler is with V design which eliminate the gap
6Luxurious dust hood: although the effect of under dust sucking is very good, the luxurious overhead dust hood can make a little bit of overflow dust disappearing
Detail imaged
Packing&delivery
Packing
Plywood package
Delivery
About 30 days after receive the down payment delivery
FAQ
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3.Location: One hour reach Qingdao sea port
How to contact us

---
