EVA Foam Rubber Foam PE Foam Roll to Sheet Cutting Machine

Product Description

Product Description

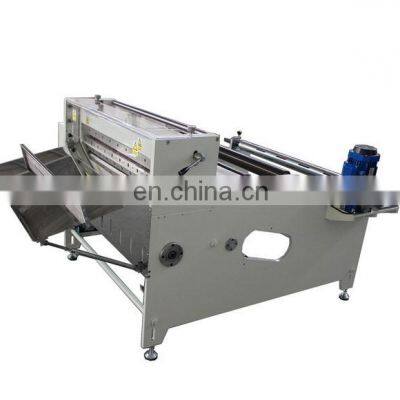

EVA Foam Rubber Foam PE Foam Roll to Sheet Cutting Machine
Functional Characteristics:
1.DELTA servo motor pull the material,high precision.
2.MITSUBISHI PLC with touch screen to set any length,quantity,speed.
3.3 inch inflatable shaft for unwinding.
4.20mm thickness steel wall make machine run stable.
5.Pulling roller coat thick PU rubber and won't scratch the material.
6.Polished and anodized aluminum guiding roller,very smooth and never harm the material.
7.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly.
8.Other standard machine:360mm,500mm,600mm,800mm,1400mm.
Purpose:
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc.
Technical Data:

Model	DP-1000
Max Feeding Width ( mm )	1000
Max unwind roll diameter(mm )	900
Max unwind roll weight(kg)	50-60
Unwind shaft diameter	3 inch
Cut 600mm speed ( times/minute )	50-80
Main Engineer Power	3kw
PLC	MITSUBISHI
Servo Motor Servo Driver	DELTA
Precision ( mm )	±0.10
Voltage	380V 50HZ

Electrical listing:

Touch Screen	KUNLUNTONGTAI	Made in China
Programmable Controller	MITSUBISHI	Made in Japan
Servo Driver	Delta	Made in Taiwan
Servo Motor	Delta	Made in Taiwan
Motor of cutting knife	SHENLI	Made in China
AC Contactor	CHNT	Made in China
Solid State Relay 20A	GOLD ELECTRICAL CONTROL	Made in China

---
