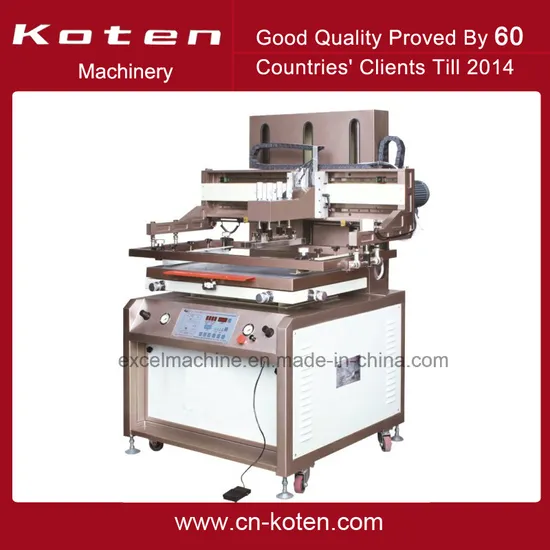

Manual Type Screen Printing Machine (JB-PYC)

Product Description

Process.
A. UV ink.
B. Ink return scraper
C. Design of printing logo
D. Silk screen
E. Frame
F. Printed material
Characteristics:
JB-PYC series horizontal-lift half-tone printing machine is a kind of semiautomatic plane half-tone printing machine. The machine can be used for screen-printing of many plane bodies, such as paper, plastic, glass, ceramics, metal, textile and leather, etc.
Lifting and lowering of the printing arm of this machine is vertical, therefore, in case of half-tone printing, presence of screen wire and consistency of aberration are improved; In case of spot printing, stability and uniformity of inking are enhanced; Fine adjustment and lock of the worktable is independent of each other, so positioning error caused by lock of the worktable can be controlled; Height and pressure of the printing blade and ink-returning blade can be step less-regulated separately, which improves printing quality and service life of half-tone; Printing travel and half-tone fixing mechanism can be fast adjusted, which is suitable for printing area with different size.
Main Specifications.

Model	JB-PY1020C	JB-PY960C	JB-PY750C
Max. printing area	700X1020mm	600x900mm	500x700mm
Max. dimension of the frame	1000x1400mm	900x1300mm	700x1100mm
Dimension of the workbench	800x1200mm	700x1100mm	600x900mm
Printing to thickness	0-25mm	0-25mm	0-25mm
Height of instant off-network	0-20mm	0-20mm	0-20mm
Printing speed	900times/hour	1000times/hour	1100times/hour
Weight	800kgs	680kgs	550kgs
Overall dimension	1700x1400x1850mm	1500x1180x1700mm	1300x950x1540mm
Printing motor	0.4kw	0.4kw	0.4kw
Printing shaft	2.2kw	1.5kw	1.5kw
Wind machine	1.5kw	1.1kw	1.1kw
Power	4.1kw	3.0kw	3.0kw

Koten Machines Loaded Into Container At the Ningbo Port.
Koten Brand Machines In The Clients' Factory.

---
