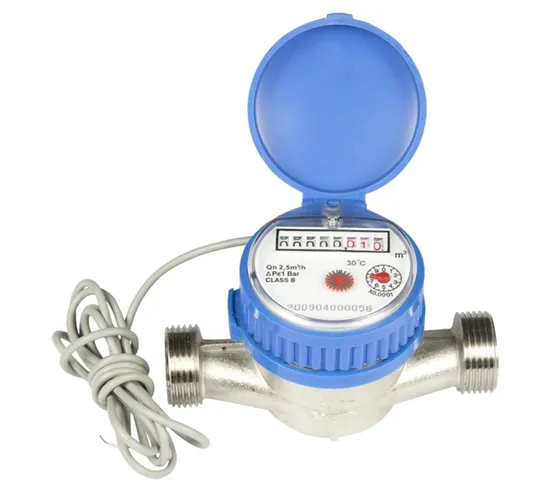

Pulse Output Water Meter Wired Remote Single Jet Brass Body Water Meter

Product Description

Single-jet, Dry-dial, Magnetic drive, Anti-magnetic
Available for cold water (30°C) and hot water (90°C), sizes Ø 15 to 25 mm (½" - 1").
Body material: Brass
Conform to ISO 4064, Class B
Applicable to data collector, Reed switch
Specification:
DN15mm 1 liter/pulse or 10 liters/pulse for option
DN20mm 10 liters/pulse
DN25mm 10 liters/pulse
MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
13	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70

INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

Meter size Dia DN (mm)	Length(L)	Width(B)	Height(H)	Connecting Thread D	Weight Kg
	mm
13	110	80	80	G 3/4B	0.7
20	130	80	80	G 1''B	0.95
25	160	80	93	G 11/4''B	1.4

DIMENSIONS AND WEIGHT
SELECTED METER TYPE
1. Reed switch
2. Connecting wire 1.5m
3. Connecting wire can choose of stainless steel jacket wire at 500mm-900mm long with end connecting threaded M8×1at 5mm long
4. Sensor connecting means:
two cores wire for reed switch no polarity
WORKING CONDITION
Water temperature:≤30ºC for cold water meter
Water temperature:≤90ºC for hot water meter
Working pressure:≤1.6Mpa

---
